VHM Insert Yamaha YZ125 2022 -2024 / Fantic XX125 2022-2024 (10.80cc)

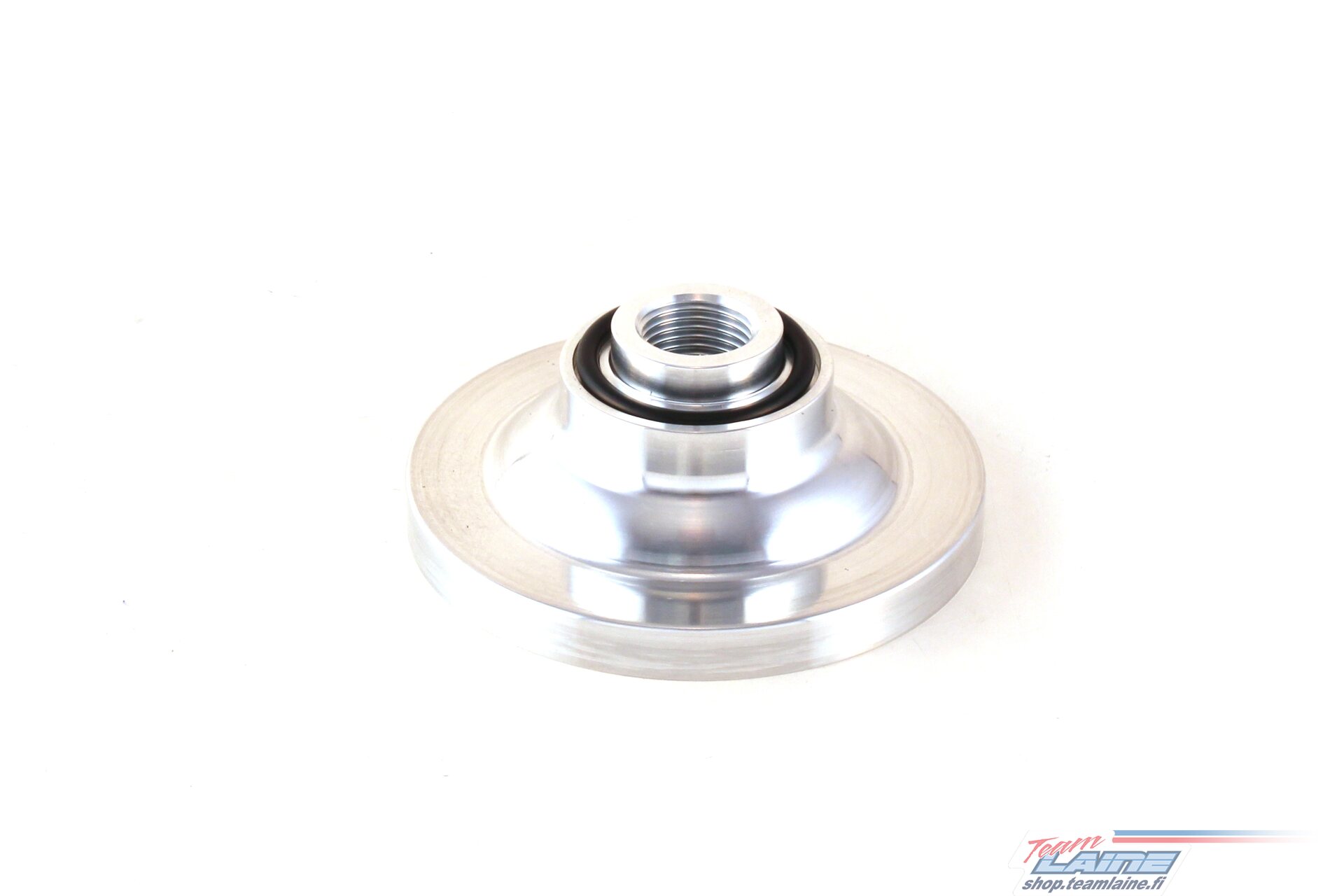

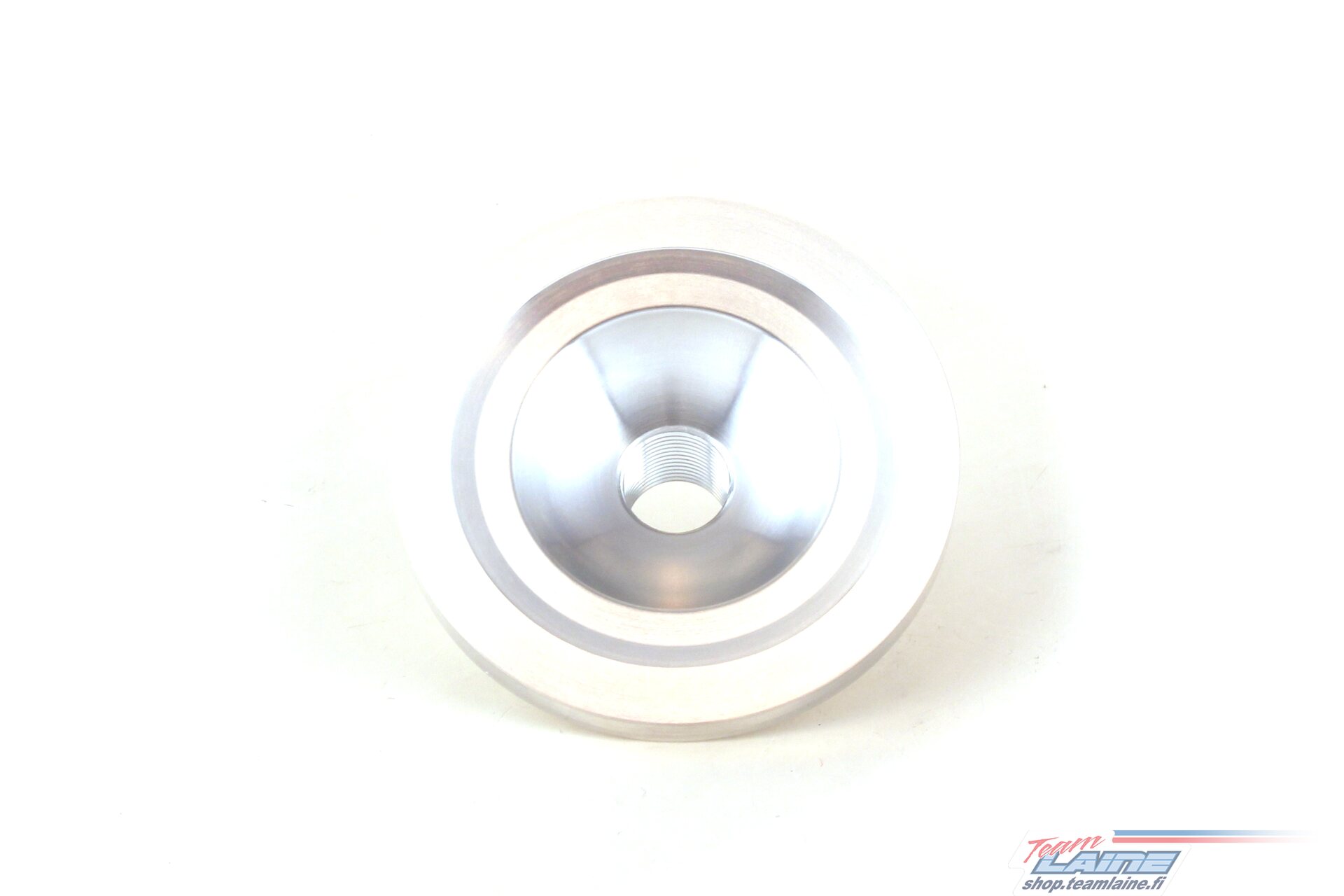

This insert has a lower volume / higher compression ratio than our VHM standard insert, meaning more low and middle range torque. This improves acceleration and gives an increased torque feeling when exiting corners. However, keep in mind that this compromises top speed. The combustion chamber fits the VHM cylinder head perfectly and is easy to change. The last numbers of the part number are engraved on the insert for identification.

Use in combination with VHM head AA33203

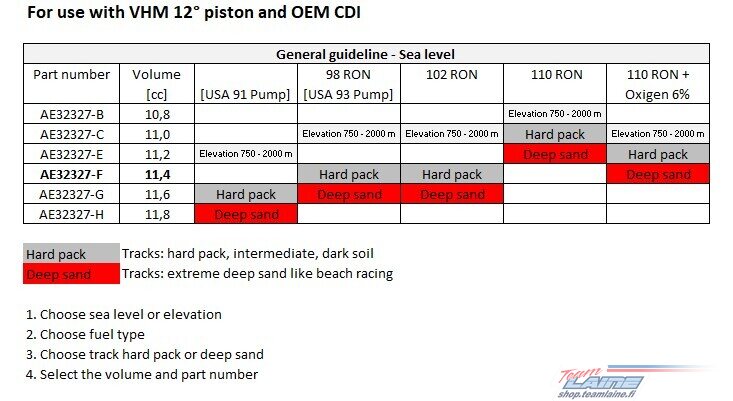

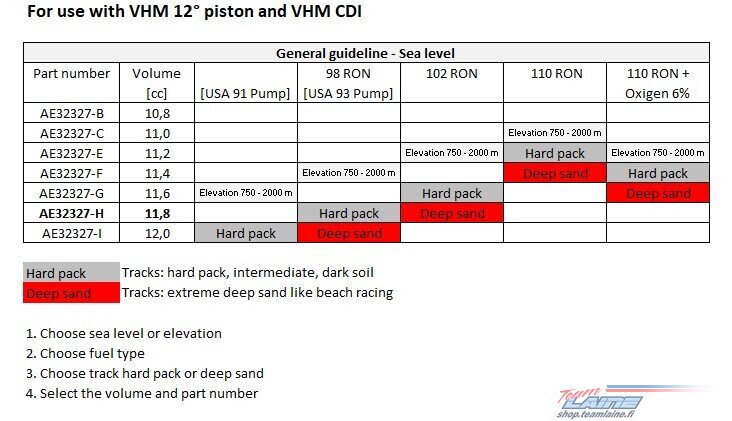

Use the insert chart as a general guideline to select the insert depending on the fuel, track and elevation.

More bottom power reaction
Best for deep sand tracks
Quick to adjust
This insert does not fit into an OEM head, only a VHM cylinder head. It's recommended to use good fuel against detonation



Specifications
Part number
AE32327-B
Type
Optional
Volume [cc]
10.80
Piston height [mm]
-0.10
Squish [mm]
1.00
Piston crown shape
Flat top 12°
Bore
Ø54
Applications
Application
Make
Model
Year
Motocross
Yamaha
YZ125
2022-2024
Motocross
Fantic
XX125
2022-2024
