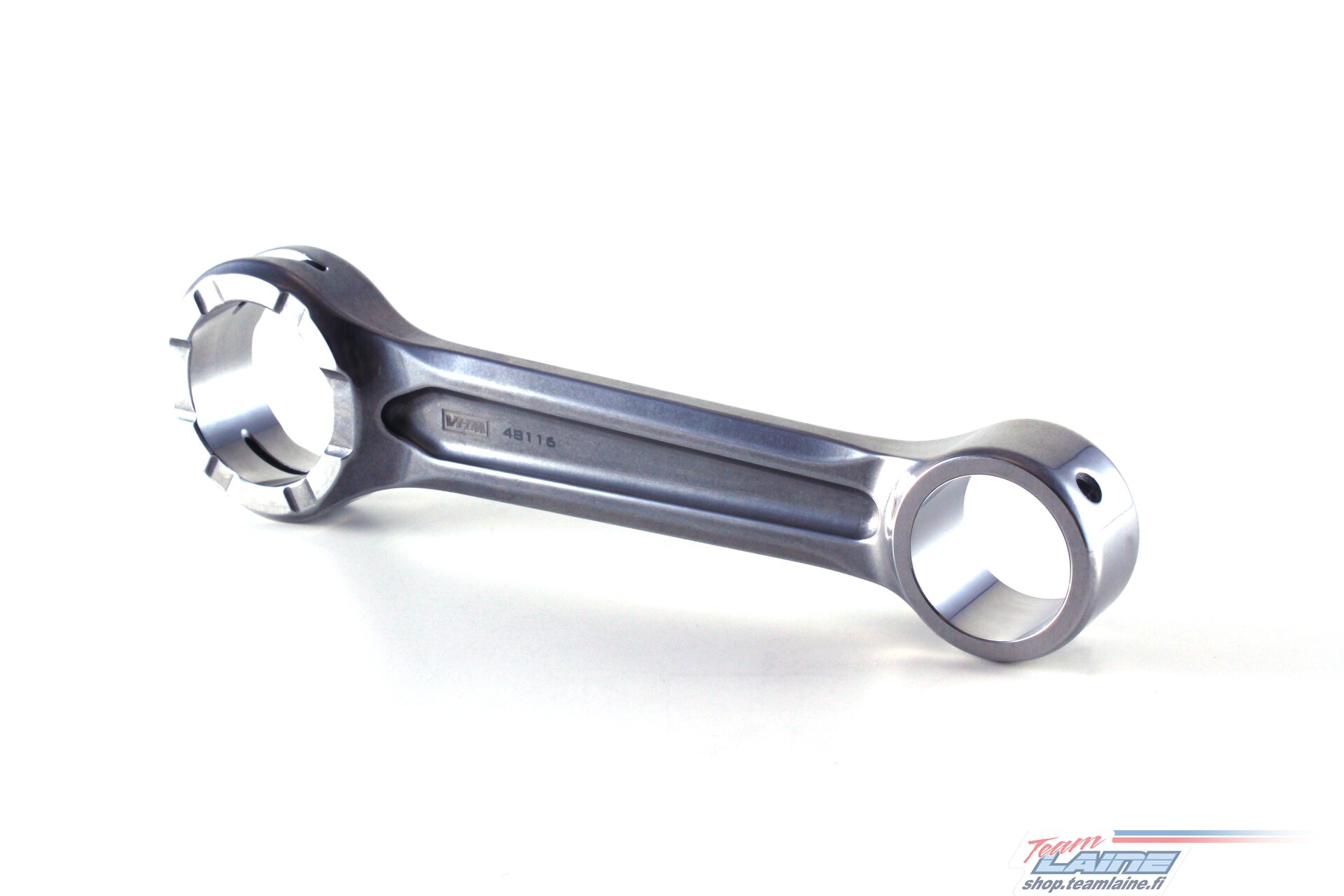

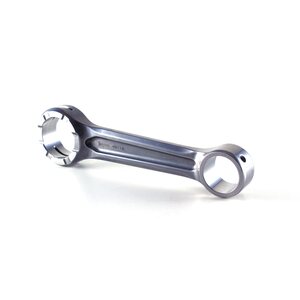

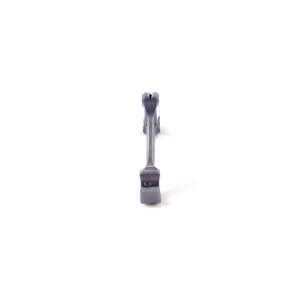

VHM Special connecting rod kit KTM 250SX 03-24 / Husqvarna TC250 17-24 / GasGas MC250 22-24

This connecting rod is extra strong and 6 grams lighter compared to the OEM connecting rod.

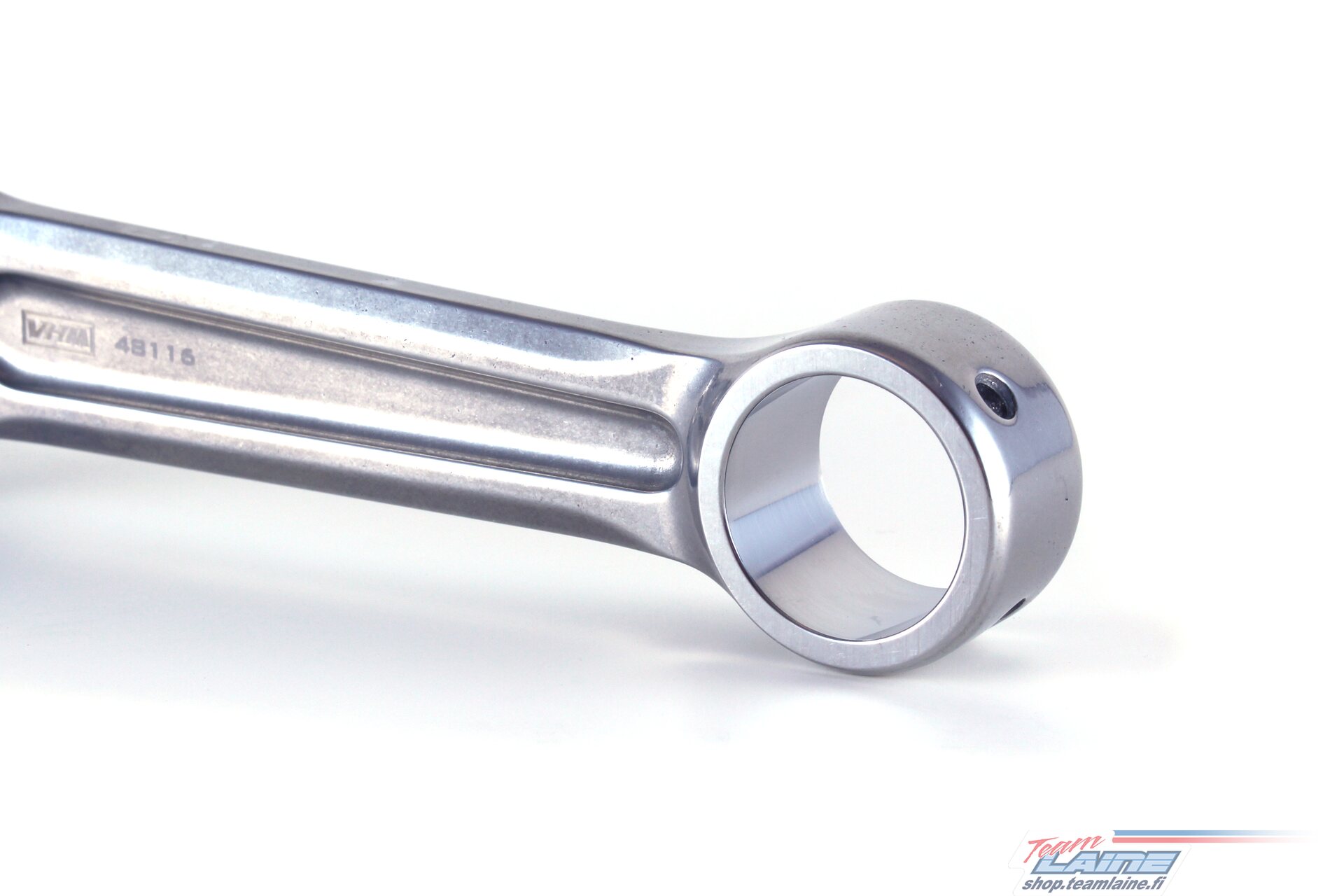

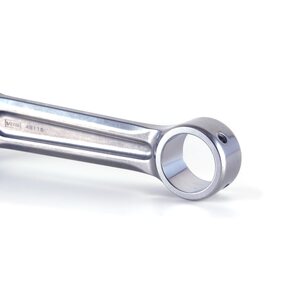

The design around the small end has been optimized for extra strength.

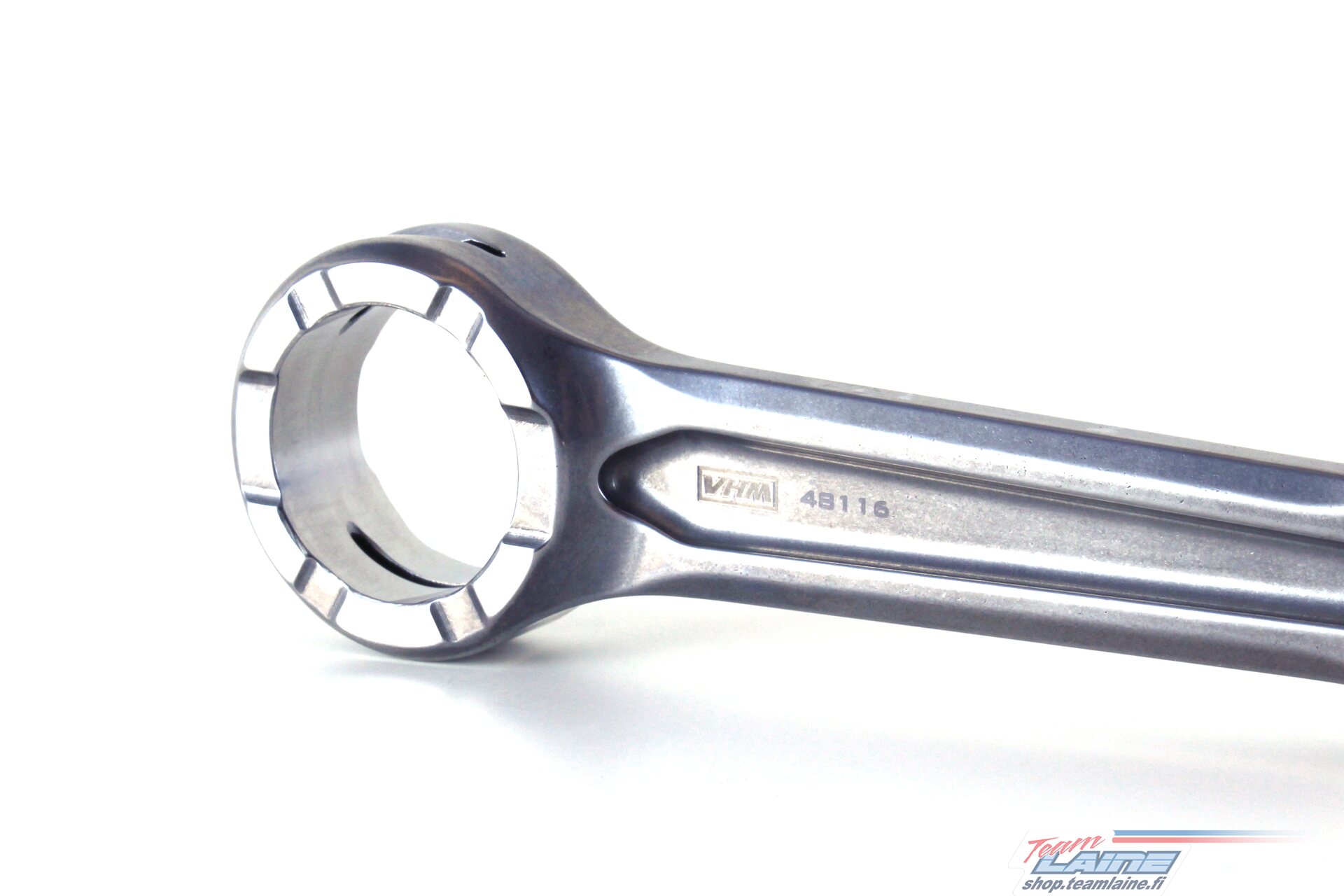

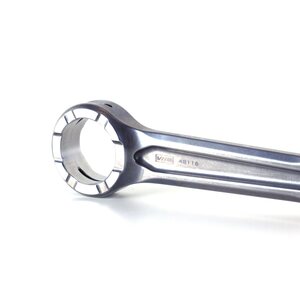

Through engine braking, standard big end hole of conrod deforms 0,015-0,02 mm oval, while our VHM conrod only deforms 0,005 mm (due to high strength material). In addition, this conrod is also super finished, which ensures a smooth surface. This helps prevent small fractures in the material.

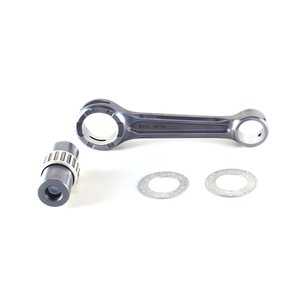

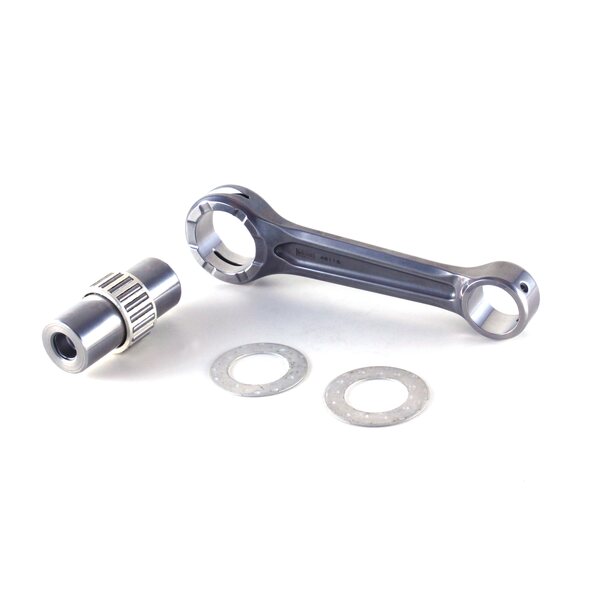

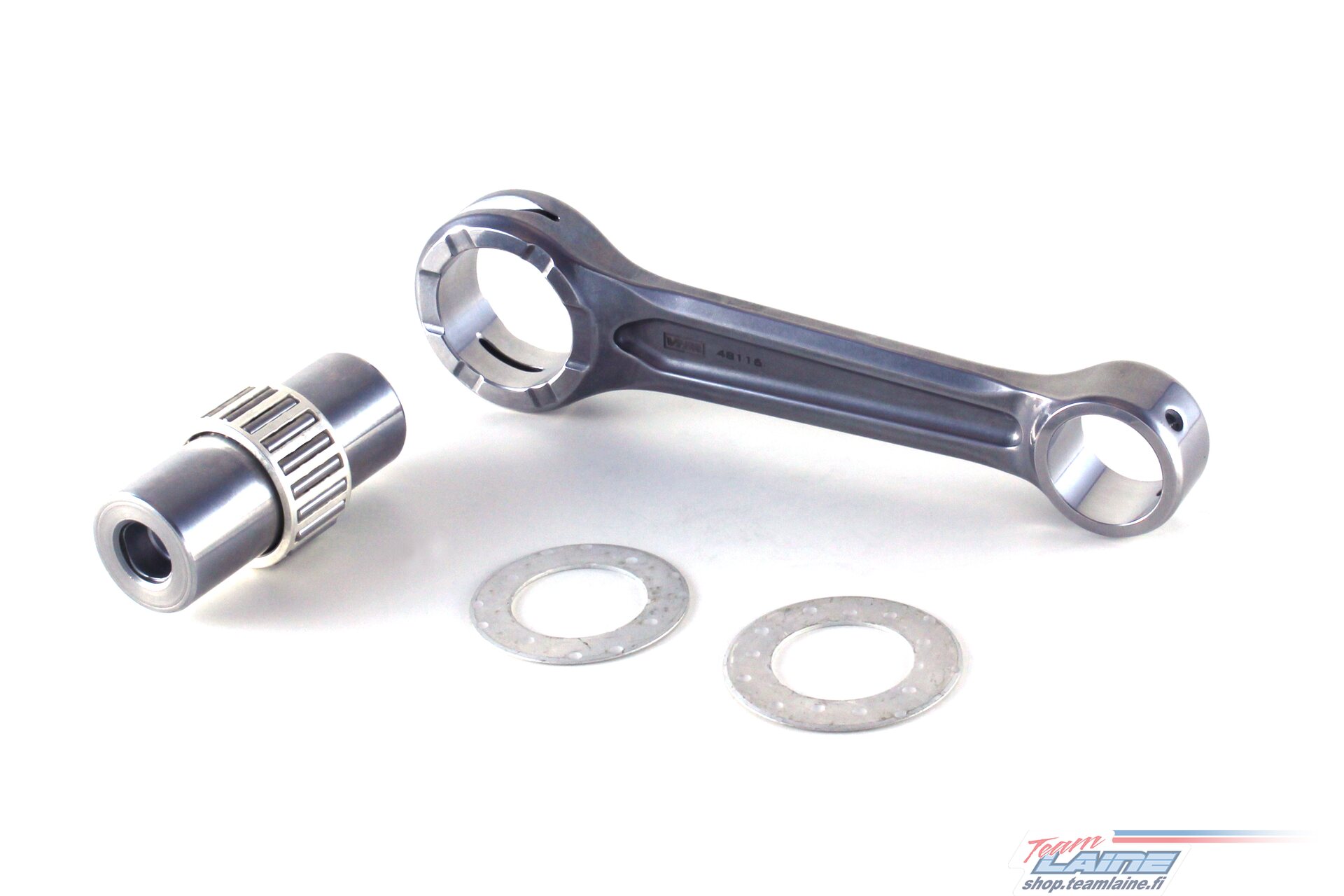

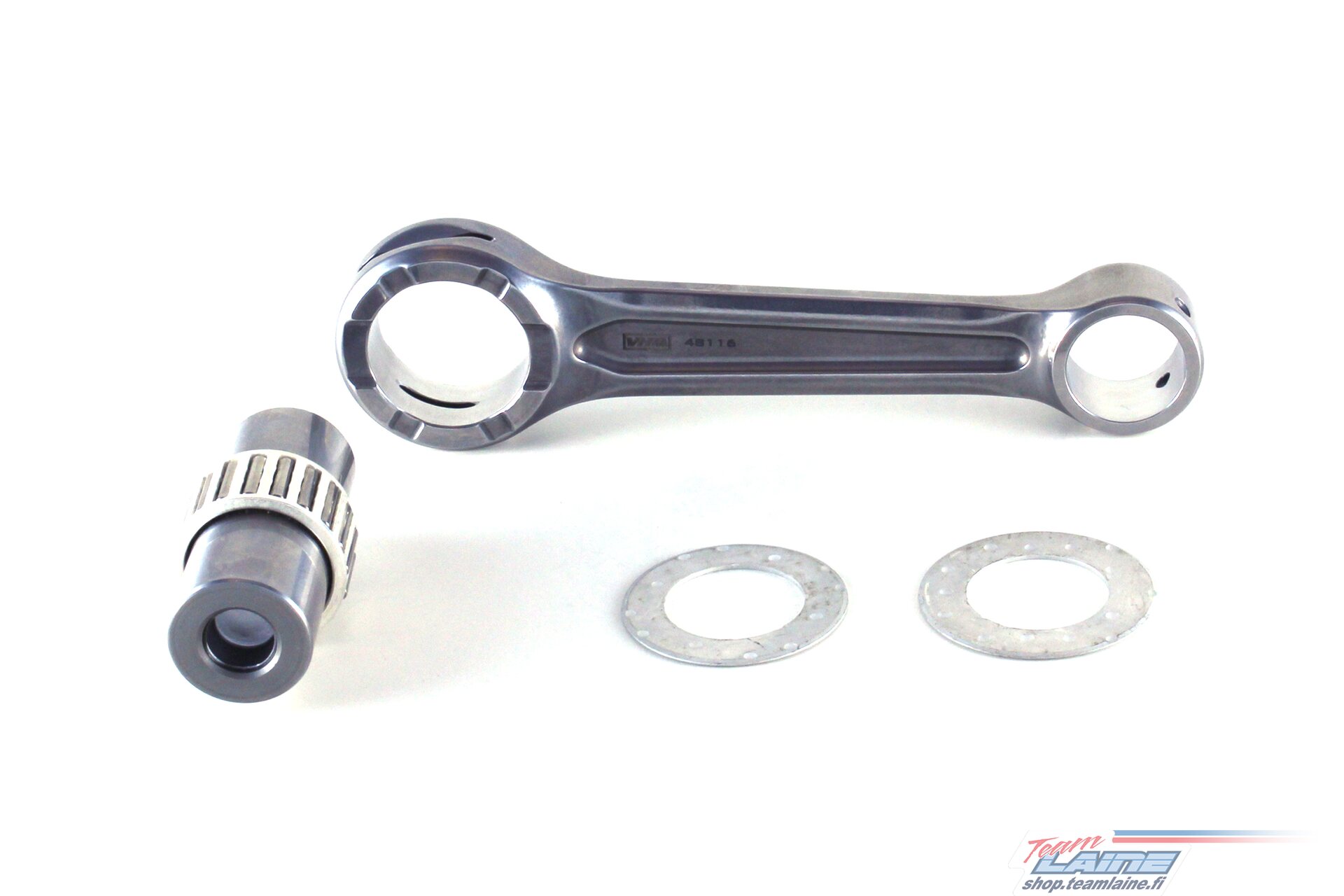

This connecting rod kit inlcudes the conrod, big end pin, big end bearing and washers.

Strong around small end
Less oval deforming
High resistance to fractures

Specifications
Part number
CRK1602
Length (center to center) [mm]
125.00
Big end bore [mm]
Ø30.00
Big end width [mm]
17.00
Small end bore [mm]
Ø22
Small end width [mm]
17.00
Applications
Application
Make
Model
Year
Motocross
KTM
250SX
2003-2024
Motocross
Husqvarna
TC250
2017-2024
Motocross
GasGas
MC250
2022-2024
