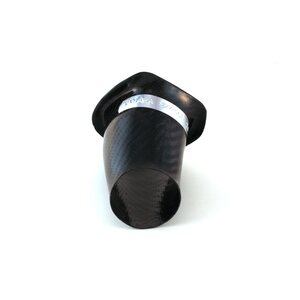

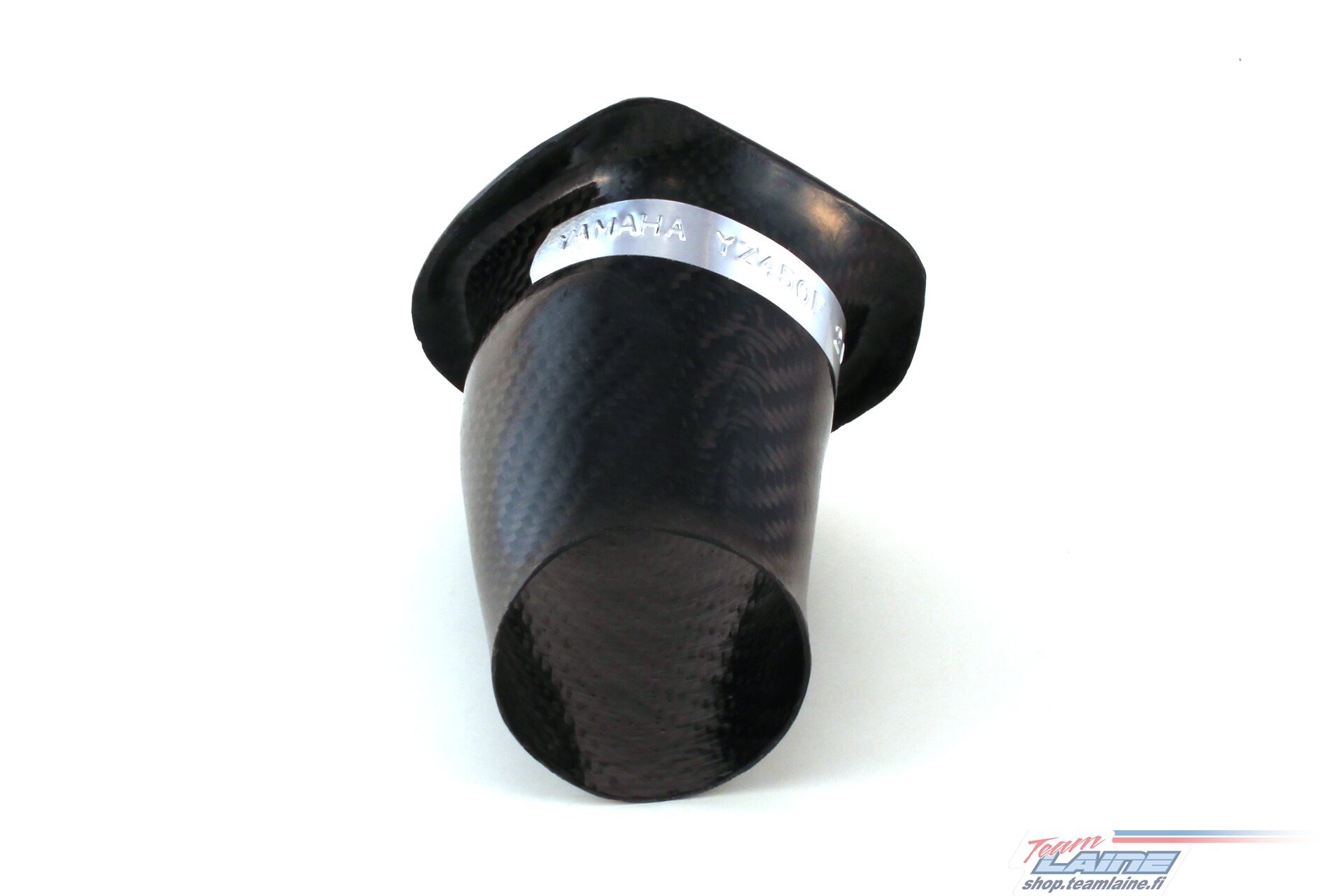

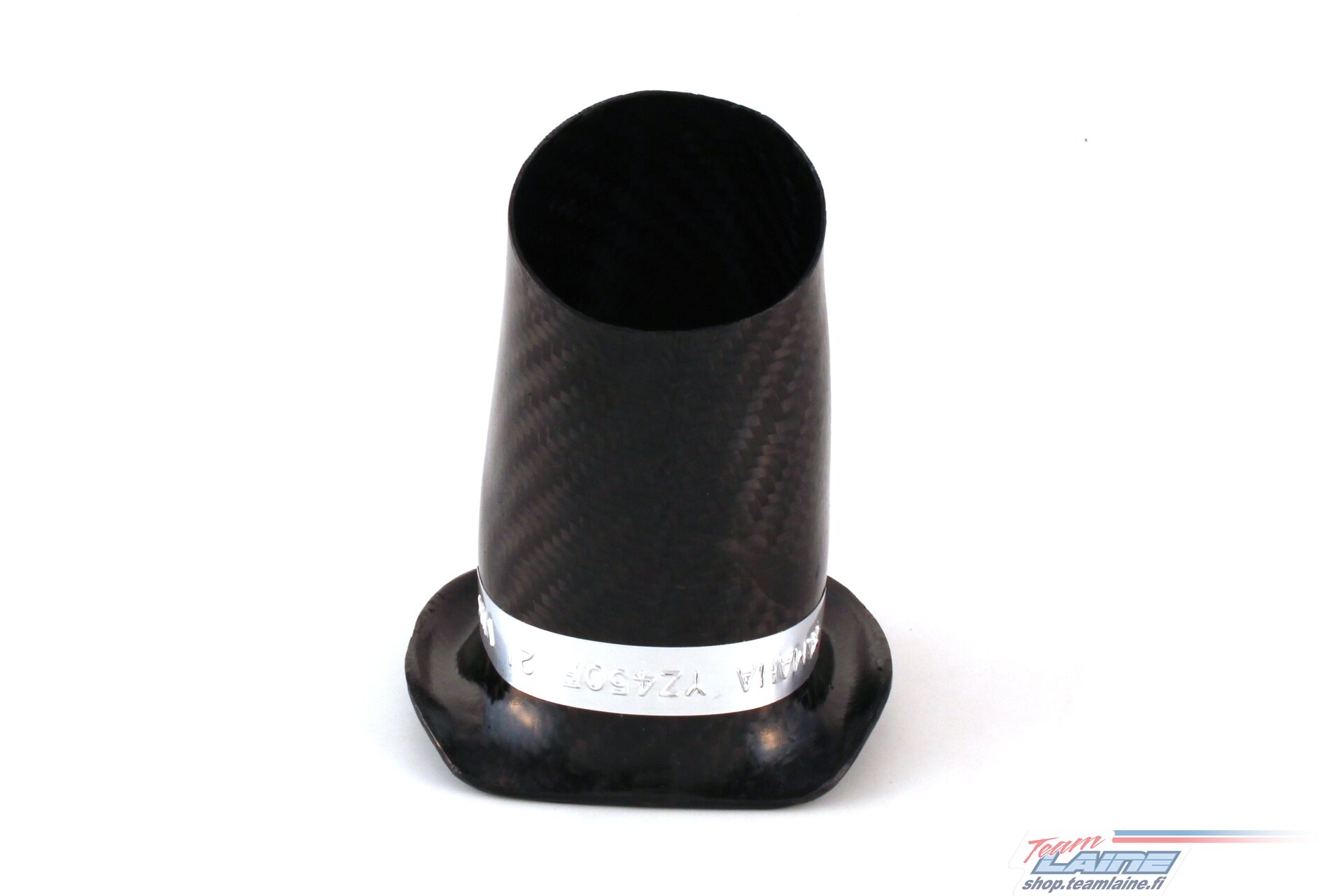

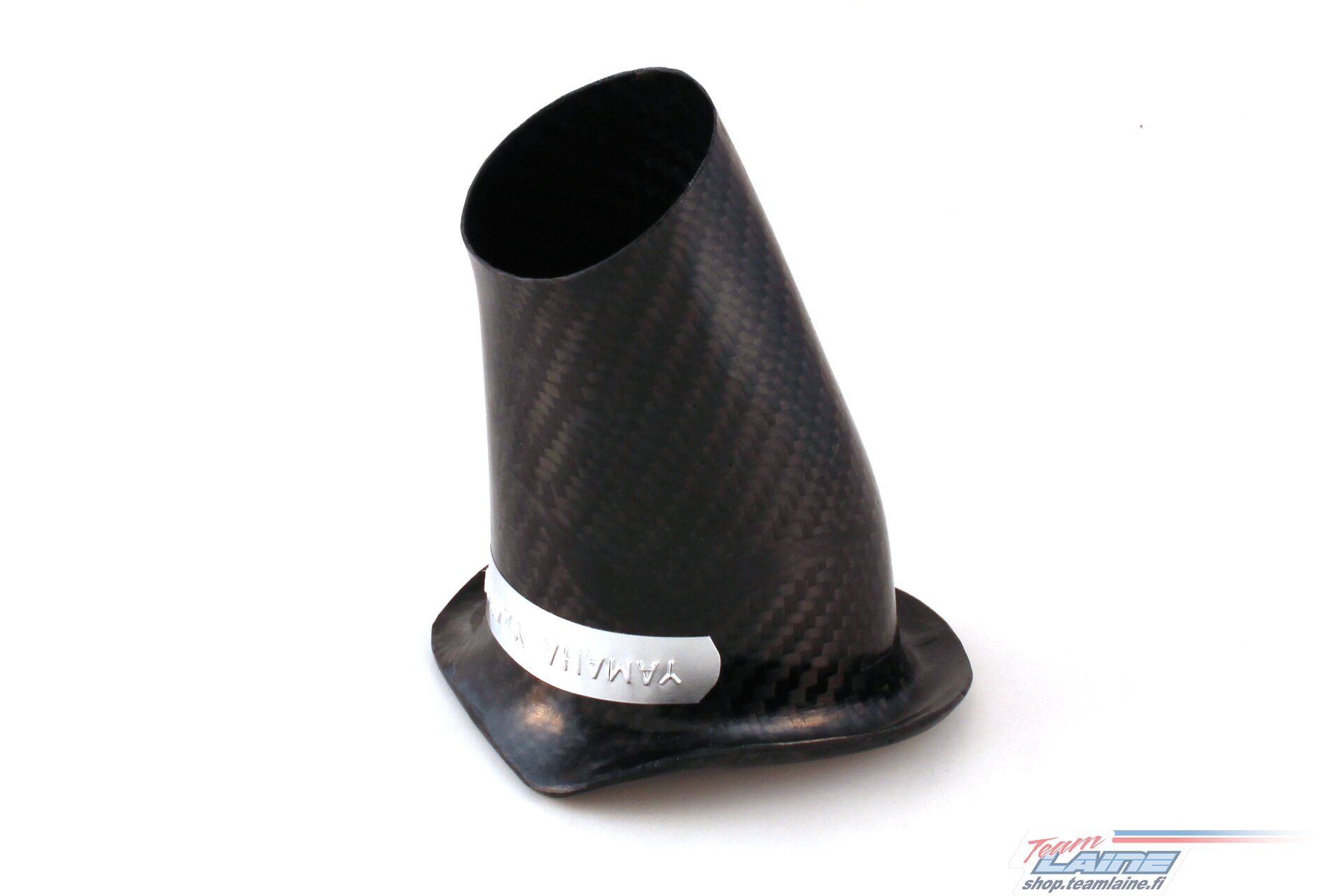

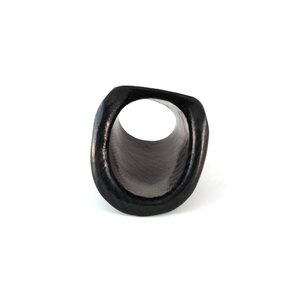

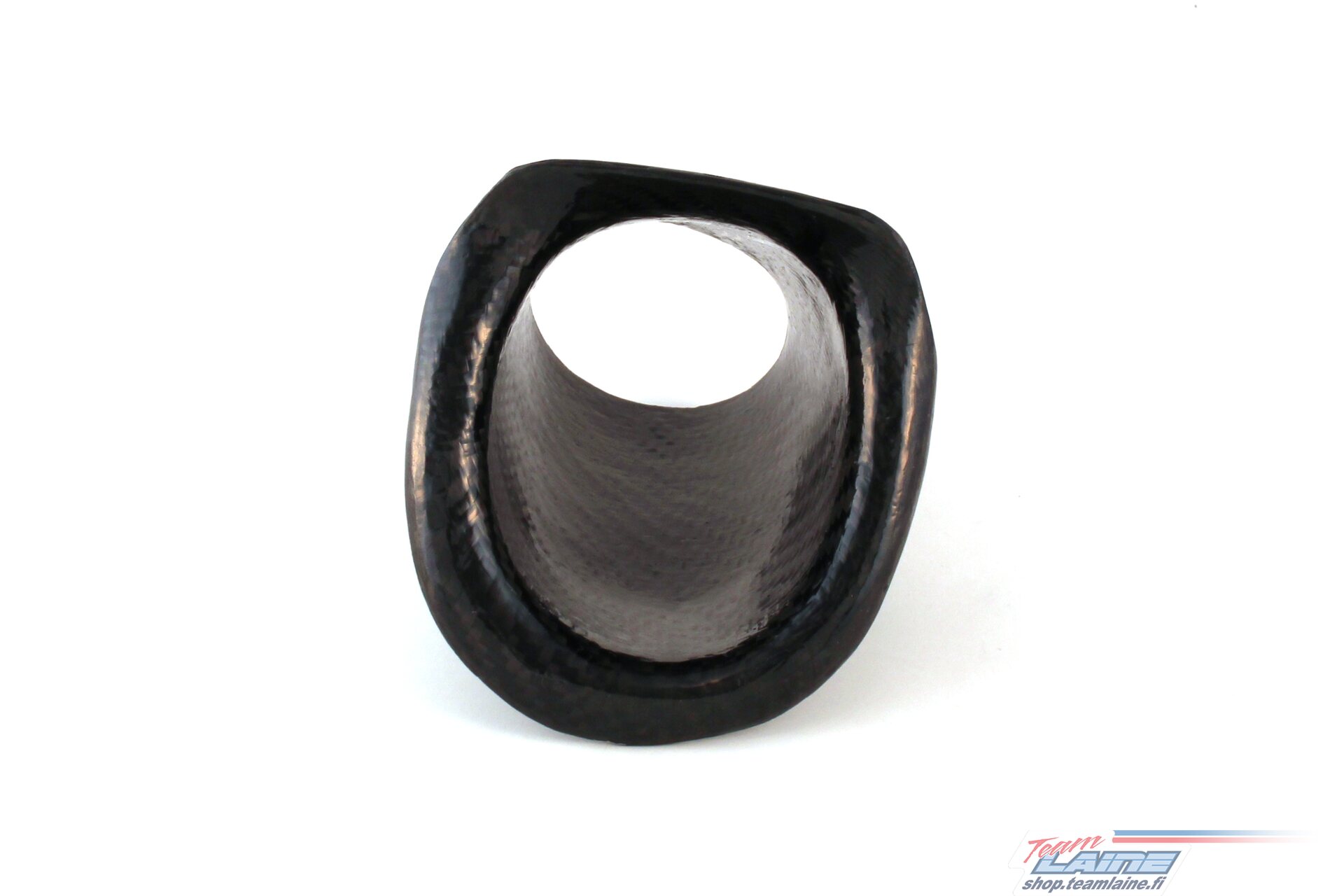

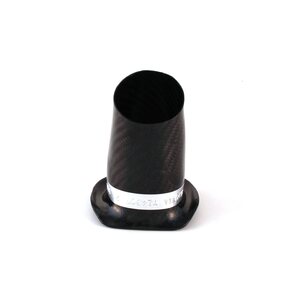

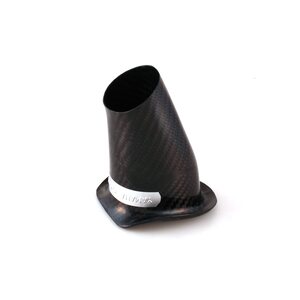

VHM Carbon air intake Yamaha YZ450F 2019 - 2022

Developed for an optimum air flow and made of real carbon. Our carbon intake prevents the airbox from deforming. Works well in combination with the VHM carbon airbox cover (AB020918), improving throttle response.

To use this air intake, you need a powerflow kit from Twin Air (part number 152222C).

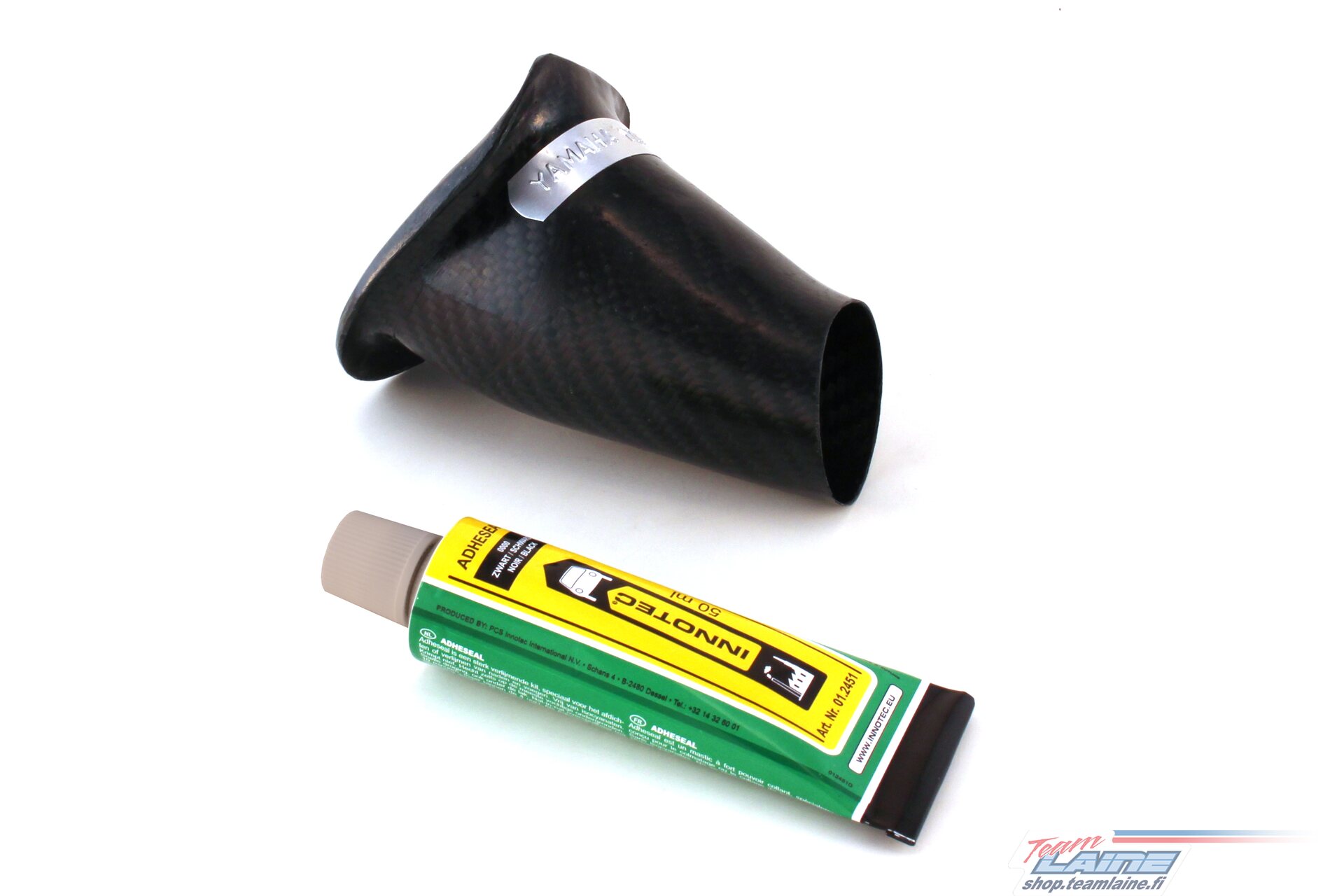

An Innotec adheseal tube is included in the box, use this when mounting the air intake!

Mounting the intake:
1. Take standard cap or VHM airbox cover off
2. Remove screws from side covers
3. Remove guide with element
4. Remove screws from holder guide
5. Remove holder guide

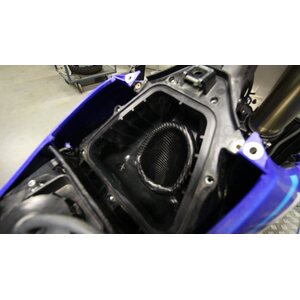

6. Mount VHM air intake into airbox with the small end down, push towards throttle body
7. Mount holder guide
8. Fasten side covers
9. Put element and guide back
10. Mount VHM carbon airbox cover or put the standard cover back on

Real carbon
Bettter throttle response
Optimum air flow
Easy to mount
Ensures that dirt/mud is evenly spread over whole airbox
Use Innotec adheseal for mounting! Must be used in combination with Twin Air powerflow kit 152222C Works best in combination with airbox cover AB020918 Since 14-05-2021 the air intake has an updated shorter designSpecifications
Part number
AI020919
Stroke
4T
Carbon type
air intake
Applications
Application
Make
Model
Year
Motocross
Yamaha
YZ450F
2019-2022
