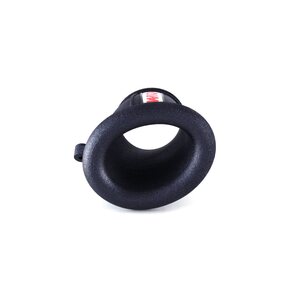

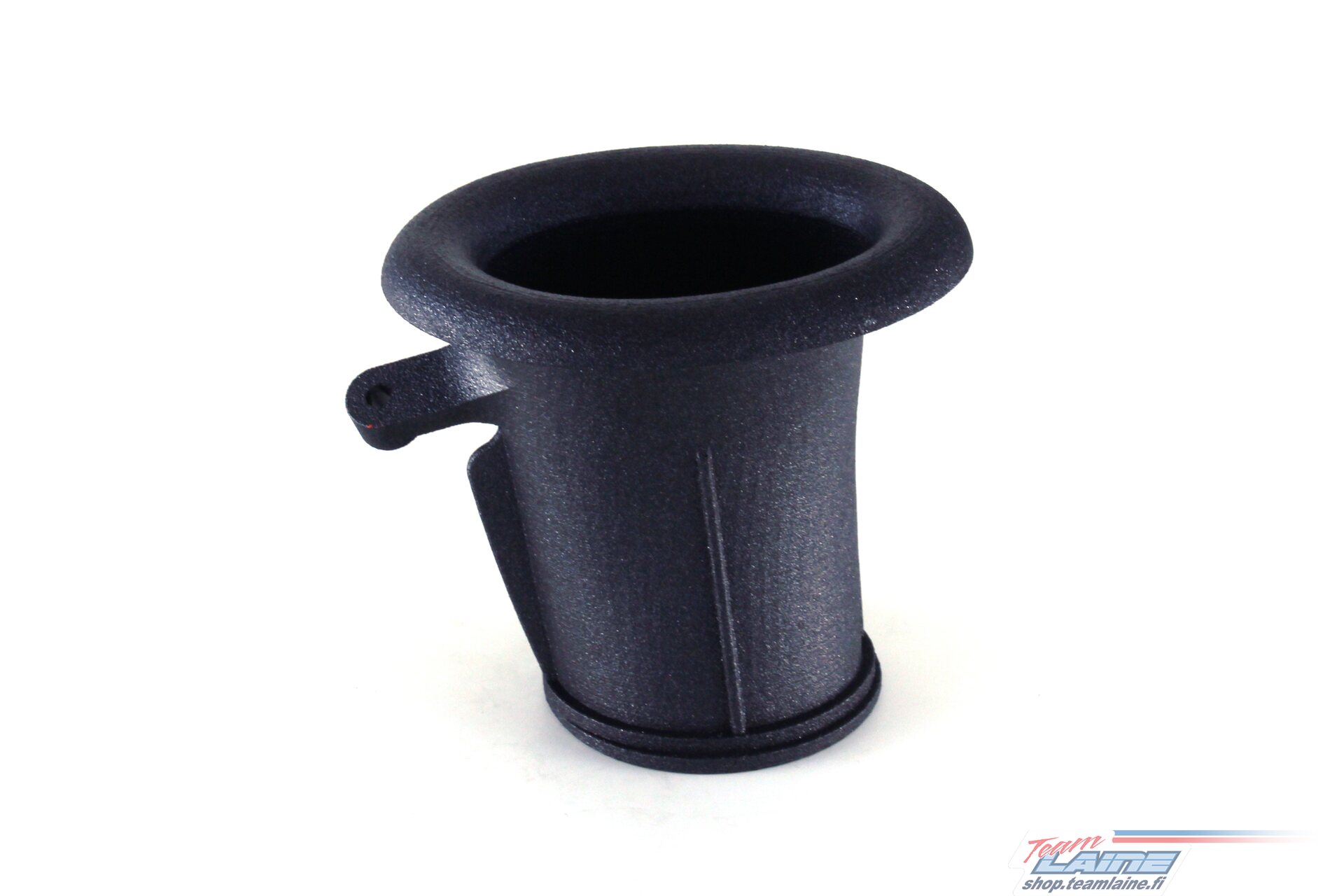

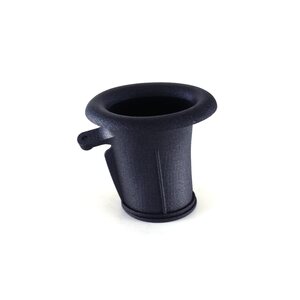

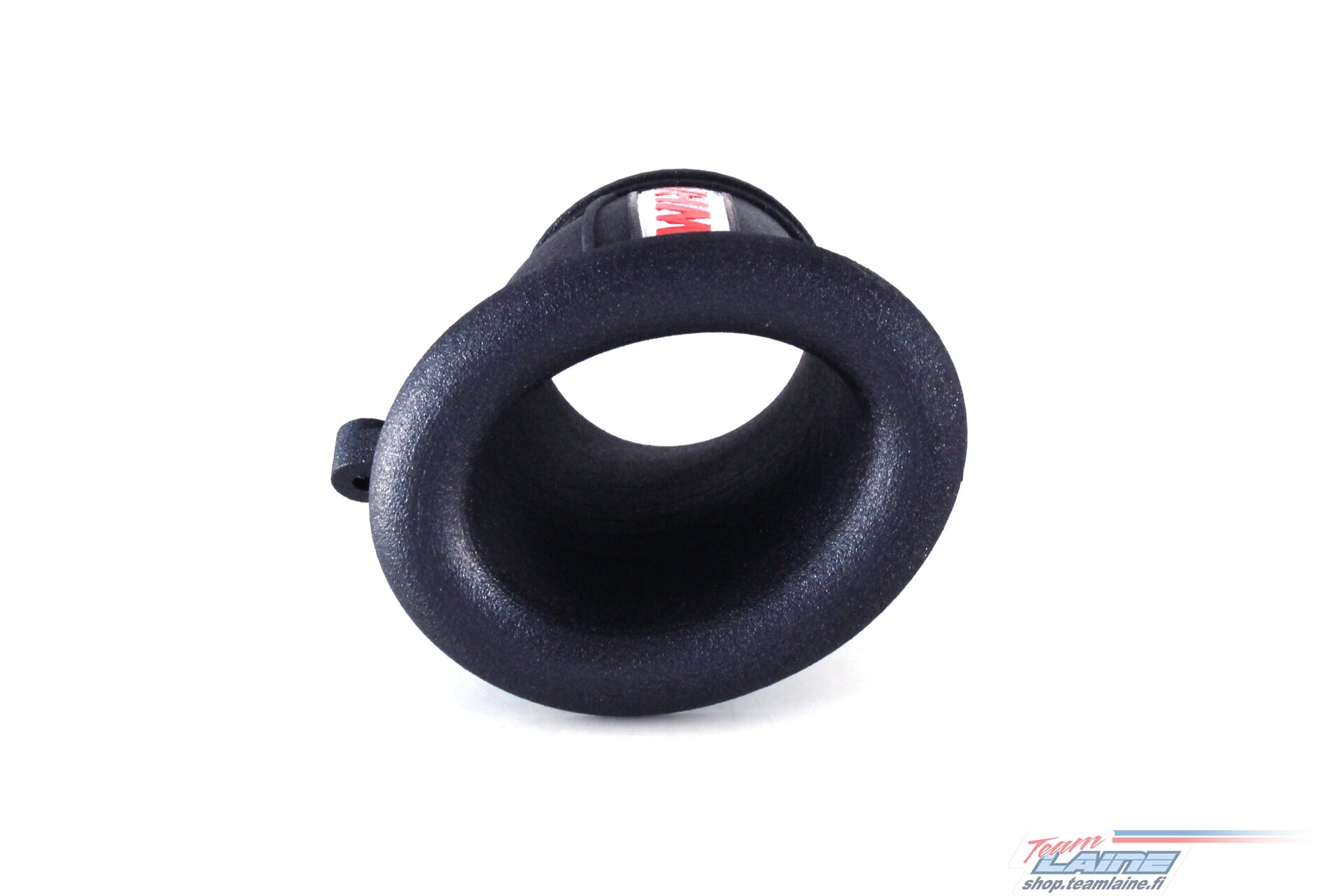

VHM Air intake MIDDLE KTM SX250F-450,Hva FC250-450 23-24, GAS MC250F-450 2024 (reco for 350)

Developed for an optimum air flow. When the engine is running and temperatures rise, the airbox rubber usually deforms. This is due to the high temperatures as it get's more soft, which leads to an even less optimal air flow. Our intake prevents the airbox from deforming and improves torque and power.

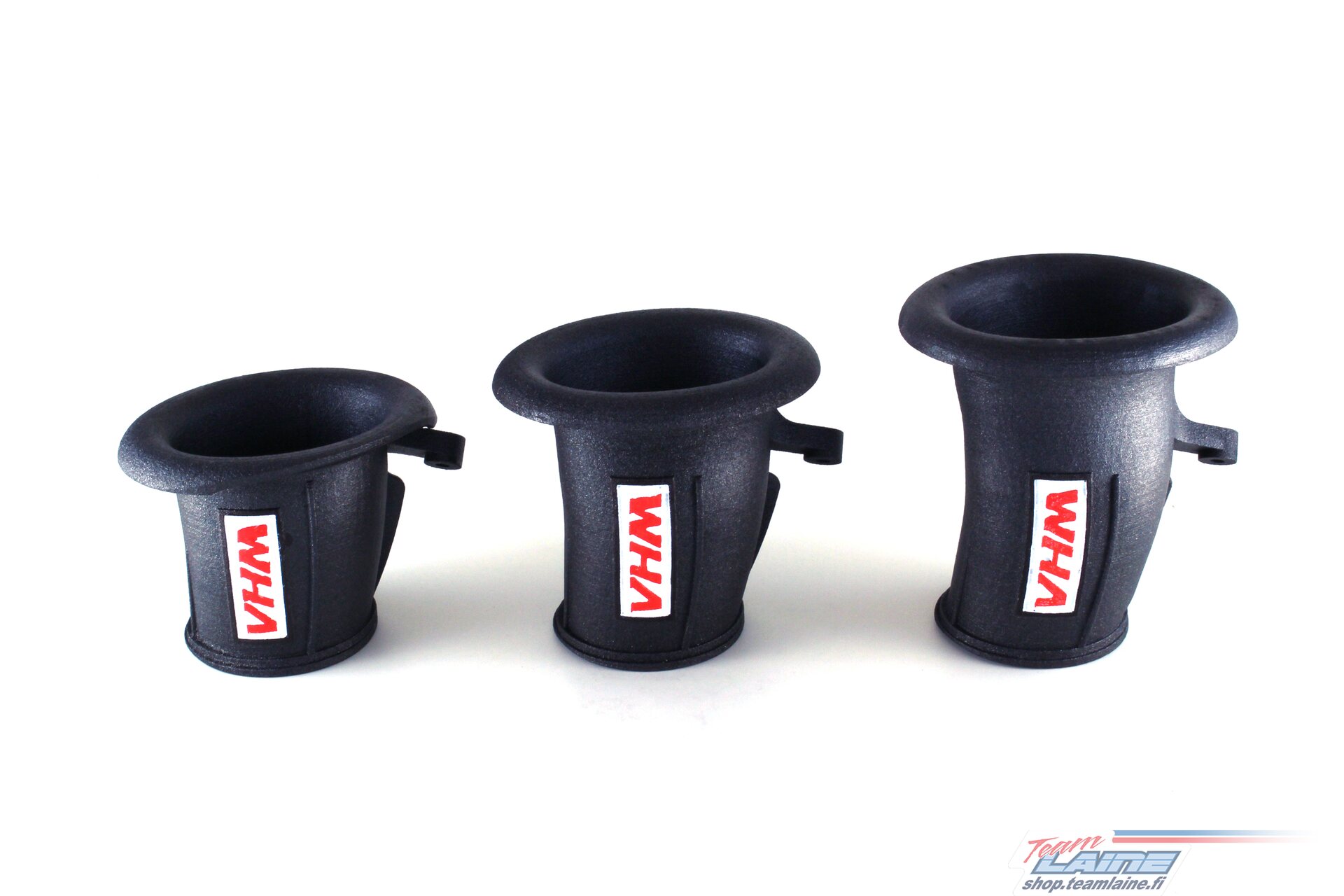

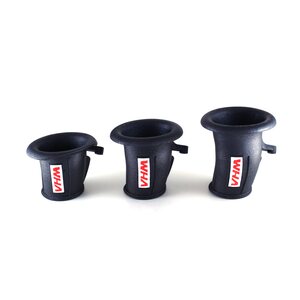

There are 3 different lenght (SHORT / MIDDLE / LONG) intakes available to suit your driving style and the need of more power/torque on a certain rpm range. This article number contains only the MIDDLE version.

MIDDLE is recommended for 350cc, improved torque

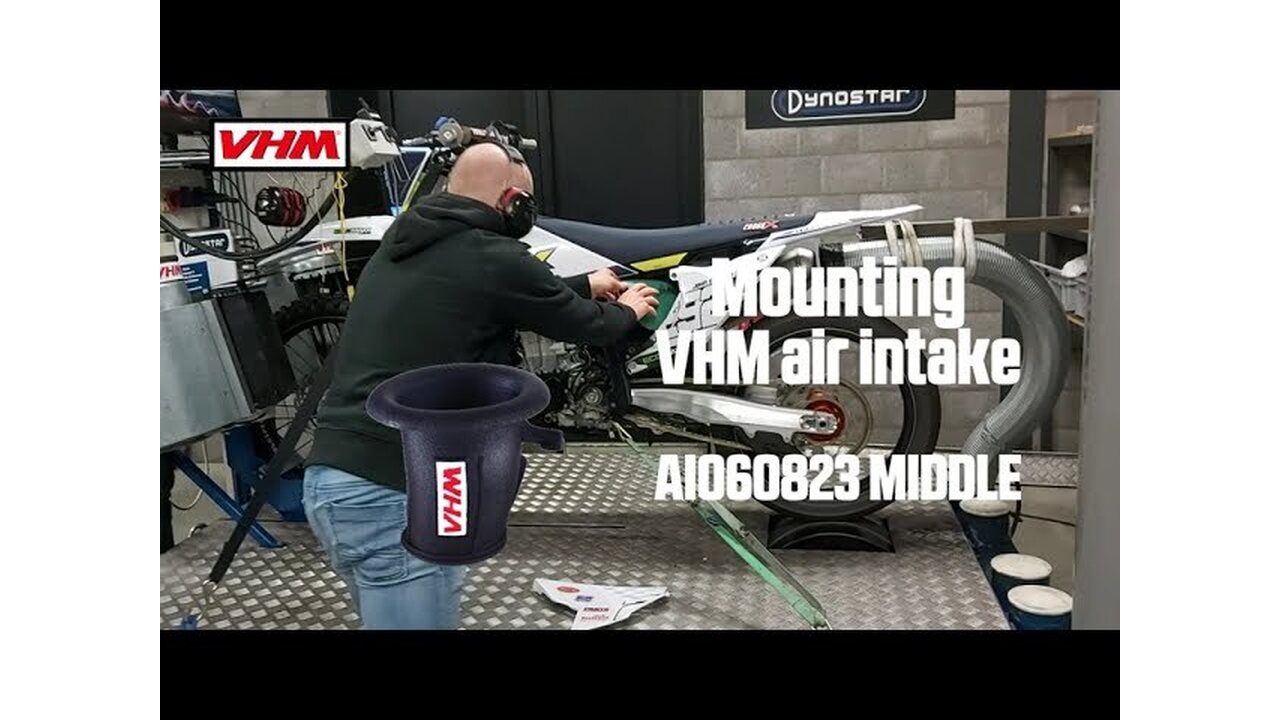

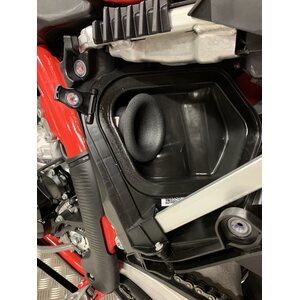

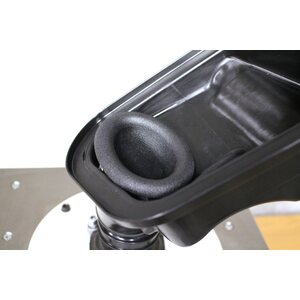

Mounting the intake
1. Remove the air filter and air filter support.
2. Remove the screw from the inlet sleeve, that holds the original intake.

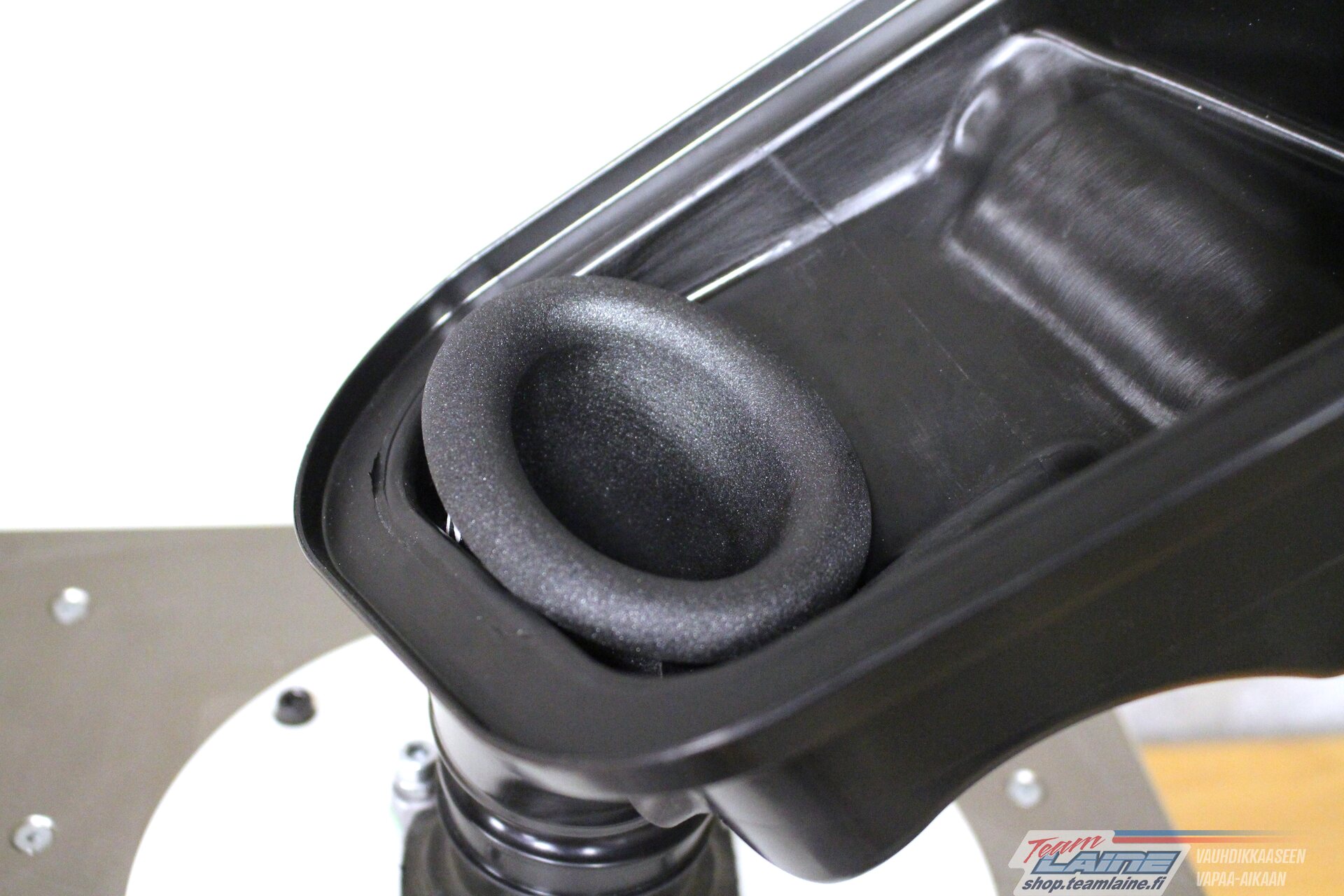

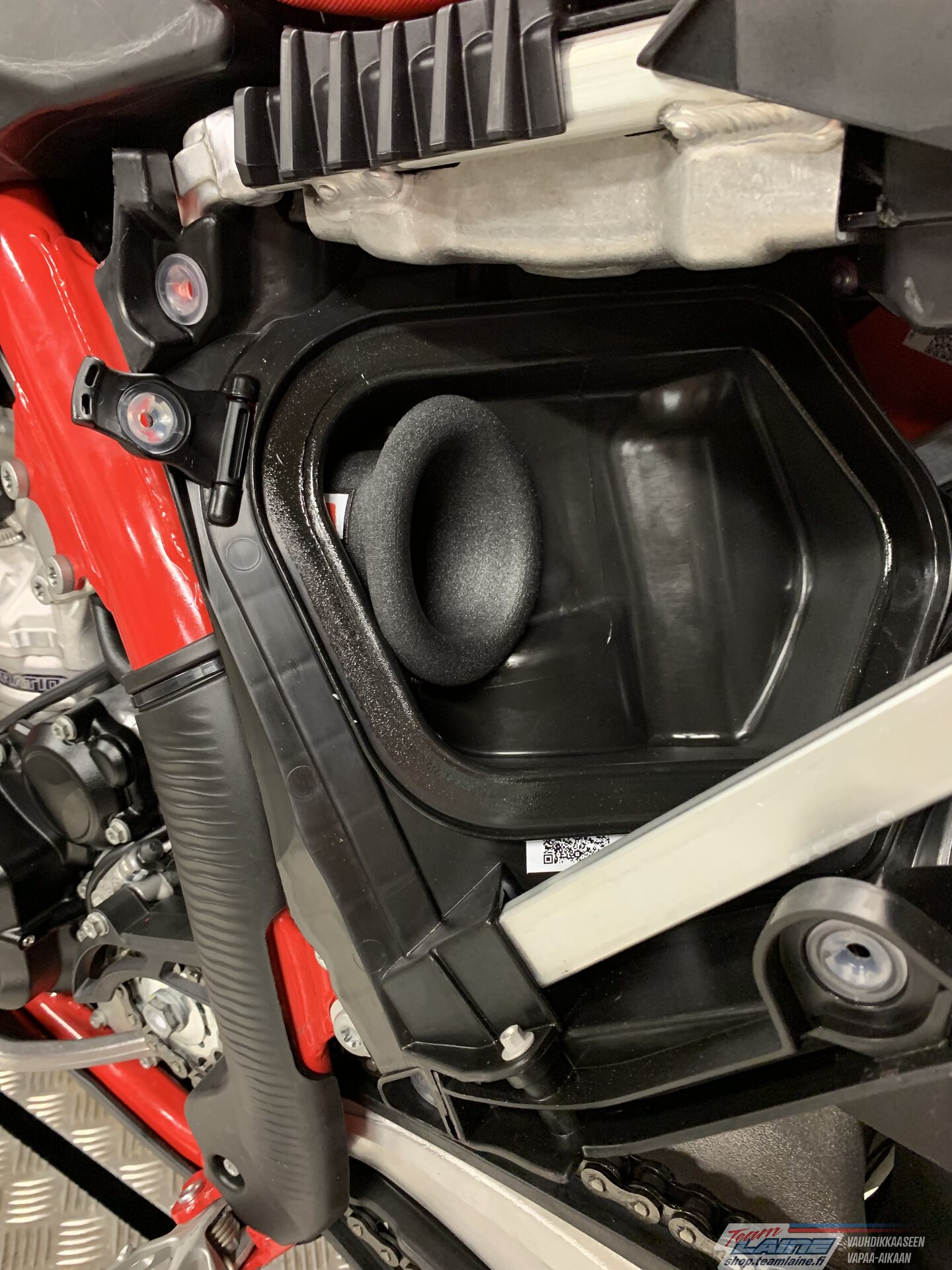

3. Remove the original intake and mount the VHM intake.
4. Push the VHM intake firmly into the inlet sleeve, there must be no gap between the VHM intake support bracket and the inlet sleeve.
5. Fix the VHM intake with the original screw on the outside of the inlet sleeve.
6. Mount the air filter support and the air filter.

More torque and improved power
Optimum air flow
Easy to mount
Prevents airbox rubber from deforming at high temperatures.
Recommended for 350

Specifications
Part number
AI060823
Stroke
4T
Carbon type
-
Applications
Application
Make
Model
Year
Motocross
KTM
250SX-F
2023-2024
Motocross
KTM
350SX-F
2023-2024
Motocross
KTM
450SX-F
2023-2024
Motocross
Husqvarna
FC250
2023-2024
Motocross
Husqvarna
FC350
2023-2024
Motocross
Husqvarna
FC450
2023-2024
Motocross
GasGas
MC250F
2024
Motocross
GasGas
MC350F
2024
Motocross
GasGas
MC450F
2024
