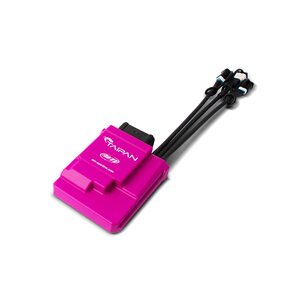

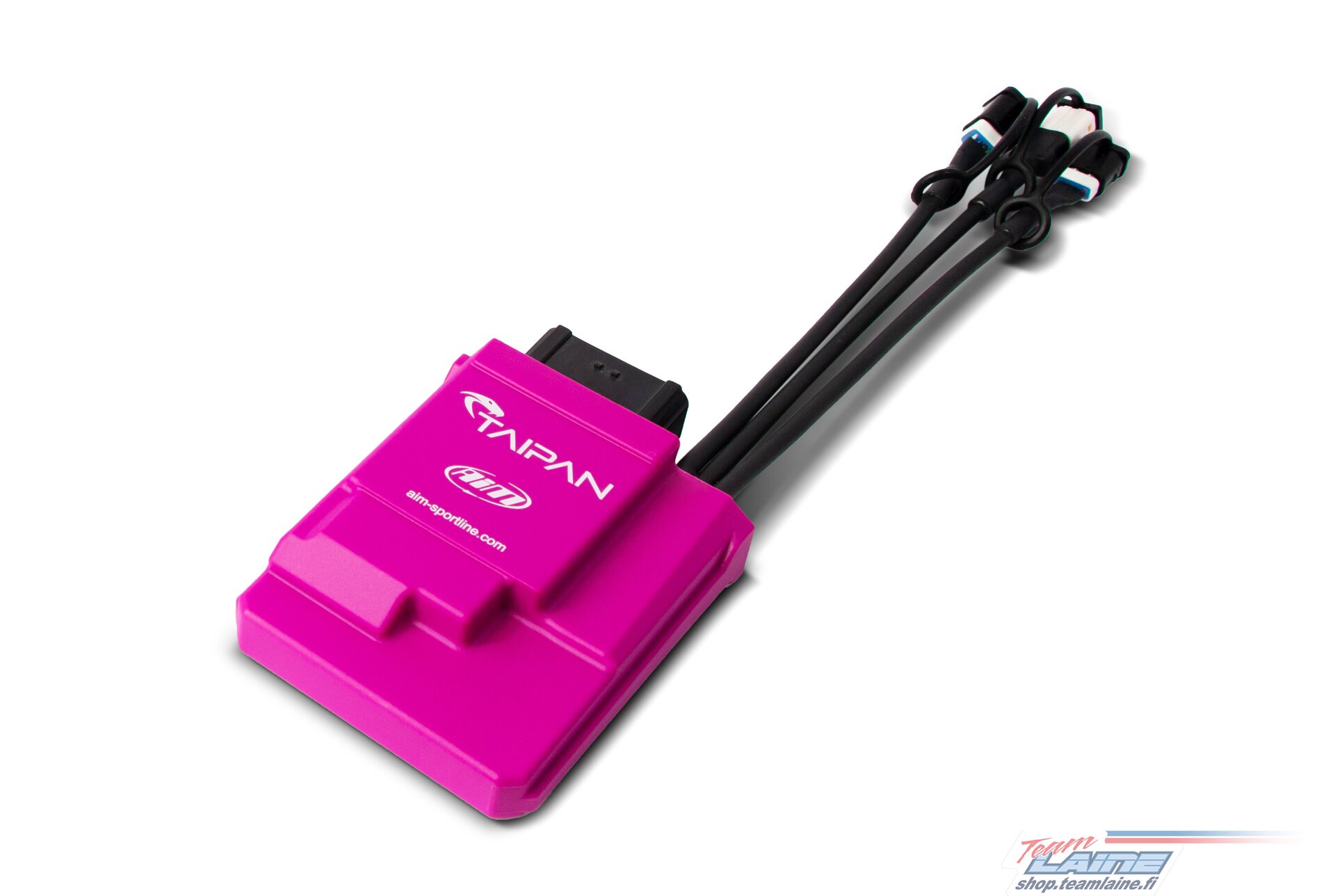

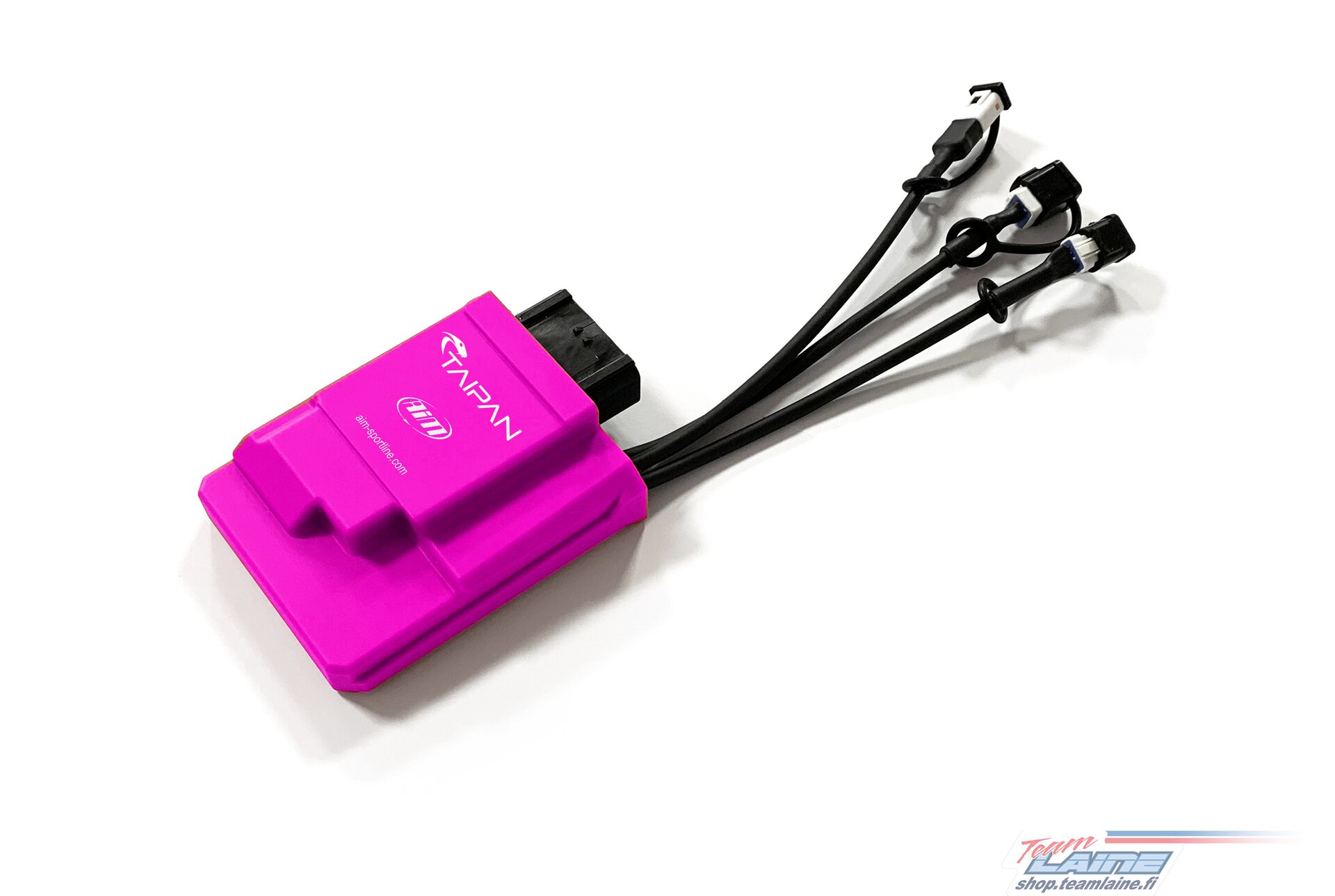

Aim ECU Taipan

The best offroad ECU in the market

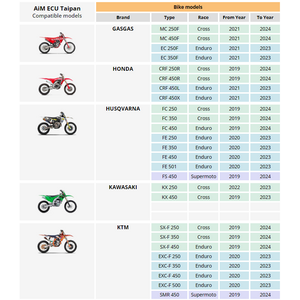

Compatible models

MOTOCROSS:
GASGAS MC 250F 2021-24
GASGAS MC 450F 2021-24
HONDA CRF 250R 2019-24
HONDA CRF 450R 2019-24
HUSQVARNA FC 250 2019-24
HUSQVARNA FC 350 2019-24
HUSQVARNA FC 450 2019-24
KAWASAKI KX 250 2021-23
KAWASAKI KX 450 2021-22
KTM SX-F 250 2019-24
KTM SX-F 350 2019-24
KTM SX-F 450 2019-24

ENDURO:
GASGAS EC 250F 2021-23
GASGAS EC 350F 2021-23
HONDA CRF 450L 2021-23
HONDA CRF 450X 2021-23
HUSQVARNA FE 250 2020-23
HUSQVARNA FE 350 2020-23
HUSQVARNA FE 450 2020-23
HUSQVARNA FE 501 2020-23
KTM EXC-F 250 2020-23
KTM EXC-F 350 2020-23
KTM EXC-F 450 2020-23
KTM EXC-F 500 2020-23

SUPERMOTO:
HUSQVARNA FS 450 2019-23
KTM SMR 450 2019-23

Additional characteristics to the stock ECU:
Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
Second injector driver for high impedance saturated injectors (12Ω)
One low side driver (1A)
Two CAN bus, one for calibration purposes, one for expansions
(AiM handlebar switch, dataloggers, dash ecc.)
Three JST JWPF waterproof auxiliary connector
Power consumption 150 mA
Connectors:
n.1 JST 04T-JWPF-VSLE-S Connector
n.1 JST 08R-JWPF-VSLE-D Connector
n.1 JST 04R-JWPF-VSLE-S Connector
n.1 33 pin male Connector
Body: PA6 + 30% glass ber
Dimensions: 89.4x75.4x29.3 mm
Waterproof: IP67
Weight: 260 g
