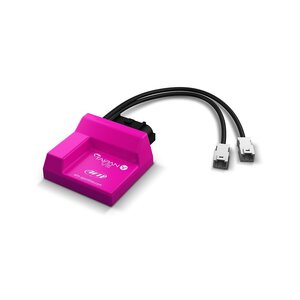

Aim ECU Taipan Y v2

The best offroad ECU in the market

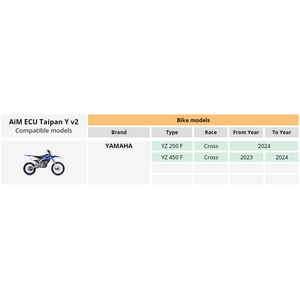

Compatible models

MOTOCROSS:
YAMAHA YZ 450 F 2023

Additional characteristics to the stock ECU:
Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
Second injector driver for high impedance saturated injectors (12Ω)
One low side driver (1A)
Two CAN bus, one for calibration purposes, one for expansions
(AiM handlebar switch, dataloggers, dash ecc.)
Three JST JWPF waterproof auxiliary connector
Power consumption 150 mA
Connectors:
n.1 JST 04T-JWPF-VSLE-S Connector
n.1 JST 08R-JWPF-VSLE-D Connector
n.1 JST 04R-JWPF-VSLE-S Connector
n.1 33 pin male Connector
Body: PA6 + 30% glass ber
Dimensions: 89.4x75.4x29.3 mm
Waterproof: IP67
Weight: 260 g
