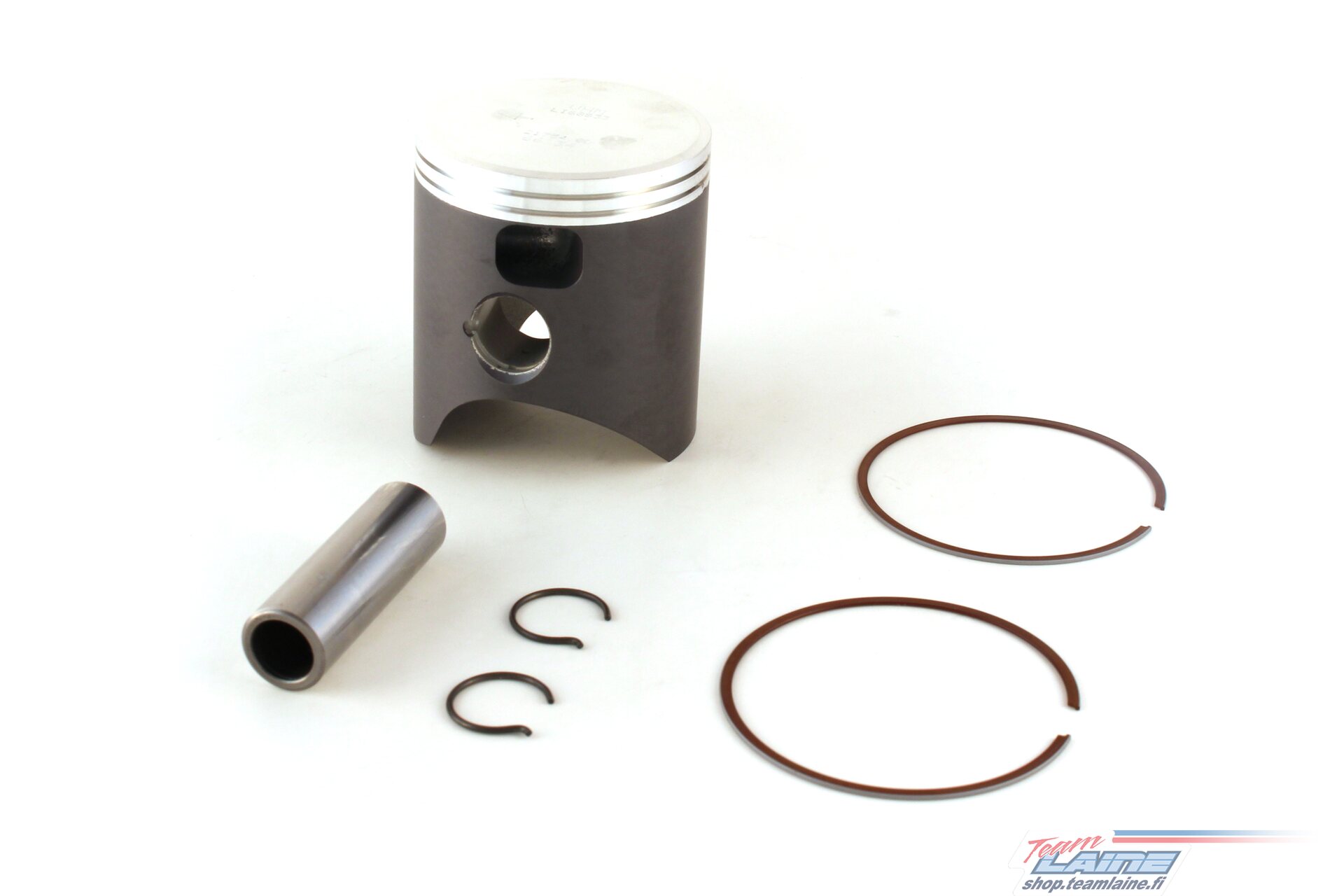

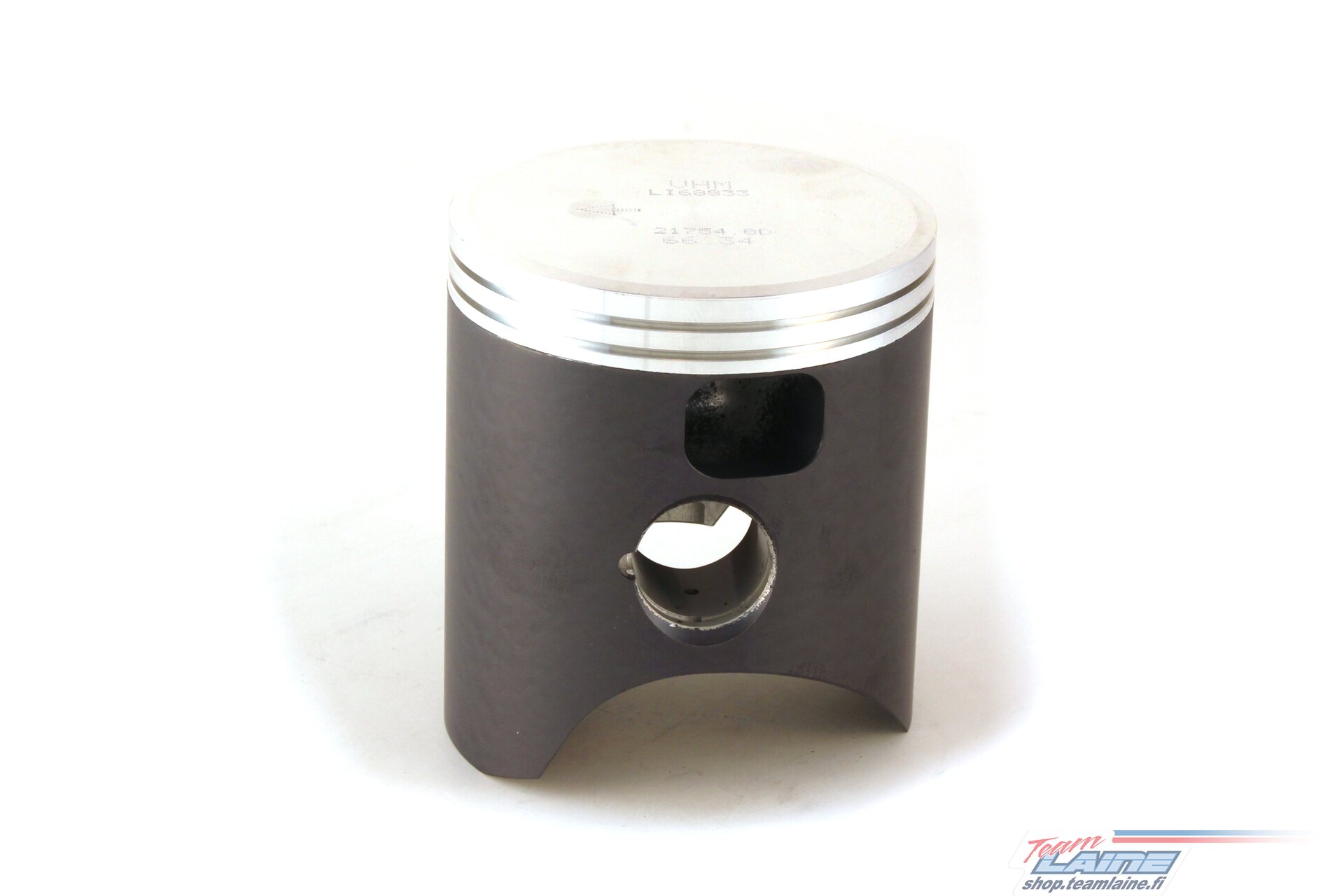

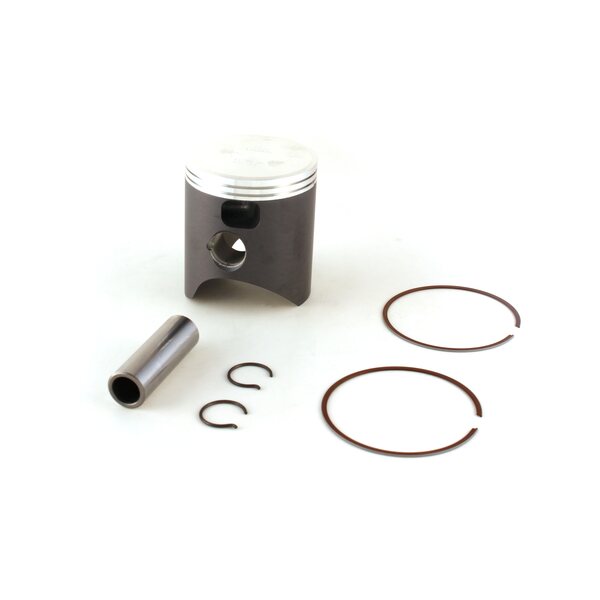

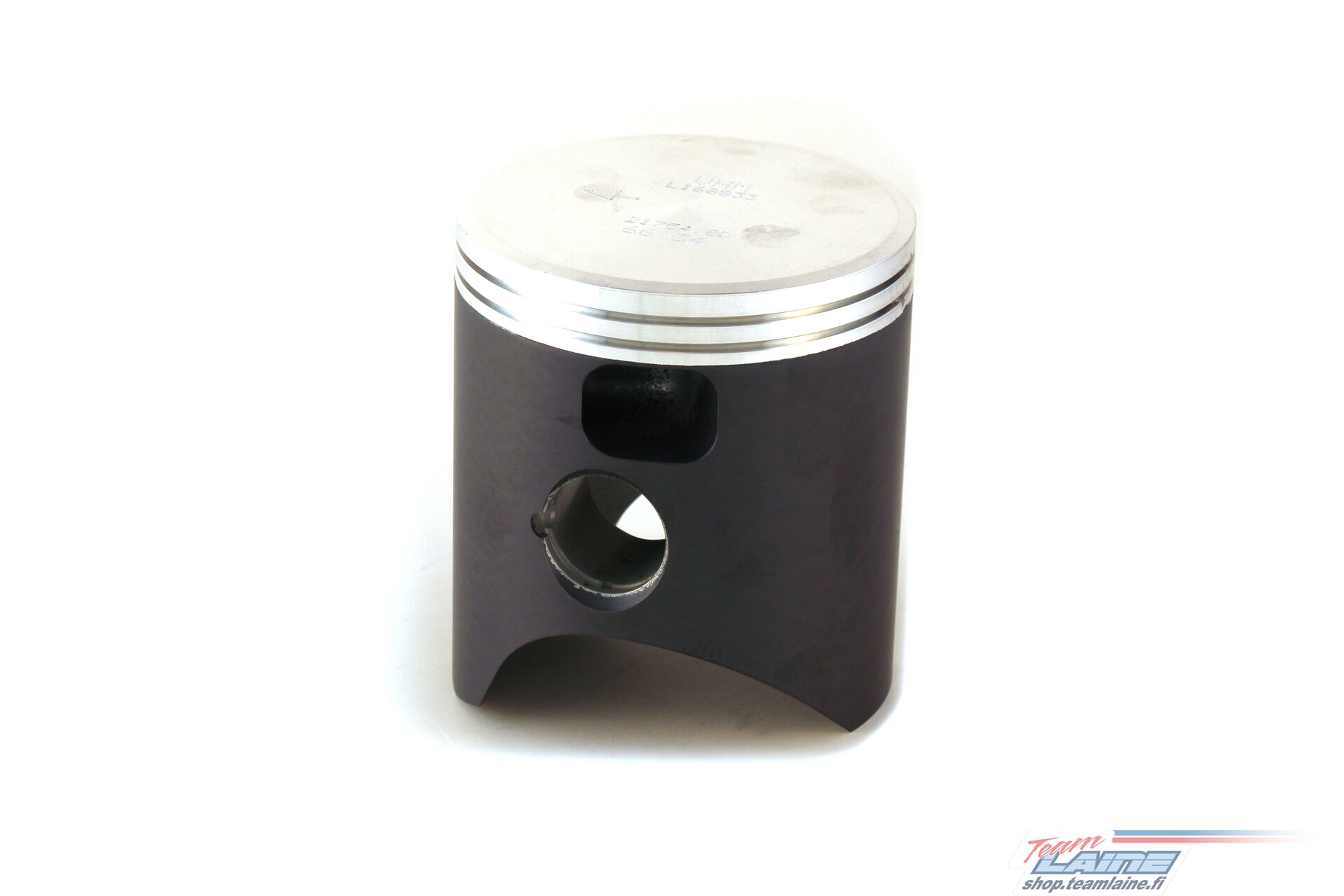

VHM Piston kit KTM 250SX 06-24 / Husqvarna TC250 14-24 / GasGas MC250 22-24 Ø66.32 (12° top)

This 12° VHM piston is specially developed for a maximum performance gain. It must be used in combination with a VHM 12° insert and head. This piston is 100% CNC machined from high quality material and has a non-circular profile. They stand for high performance, longevity and keeping high performance during it's lifetime.

The pistons has a black coloured coating on the piston skirt to reduce friction and wear.

Use in combination with
VHM insert AE32337-024 and head AA33209 (for 250SX 2023- 2024 / TC250 2023 - 2024 / GasGas MC250 2024)
VHM insert AE32272-024 and head AA33166 (for 250SX 2017 - 2022 / TC250 2017 - 2022)
VHM insert AE32129-068 and head AA33098 (for 250SX 2007 - 2016 / TC250 2014 - 2016)

High performance
Longevity
Keeps high performance during lifetime
This piston needs a clearance of 0.07 mm, VHM standard size is Ø66.33. Must be used in combination with a VHM 12° insert and head.

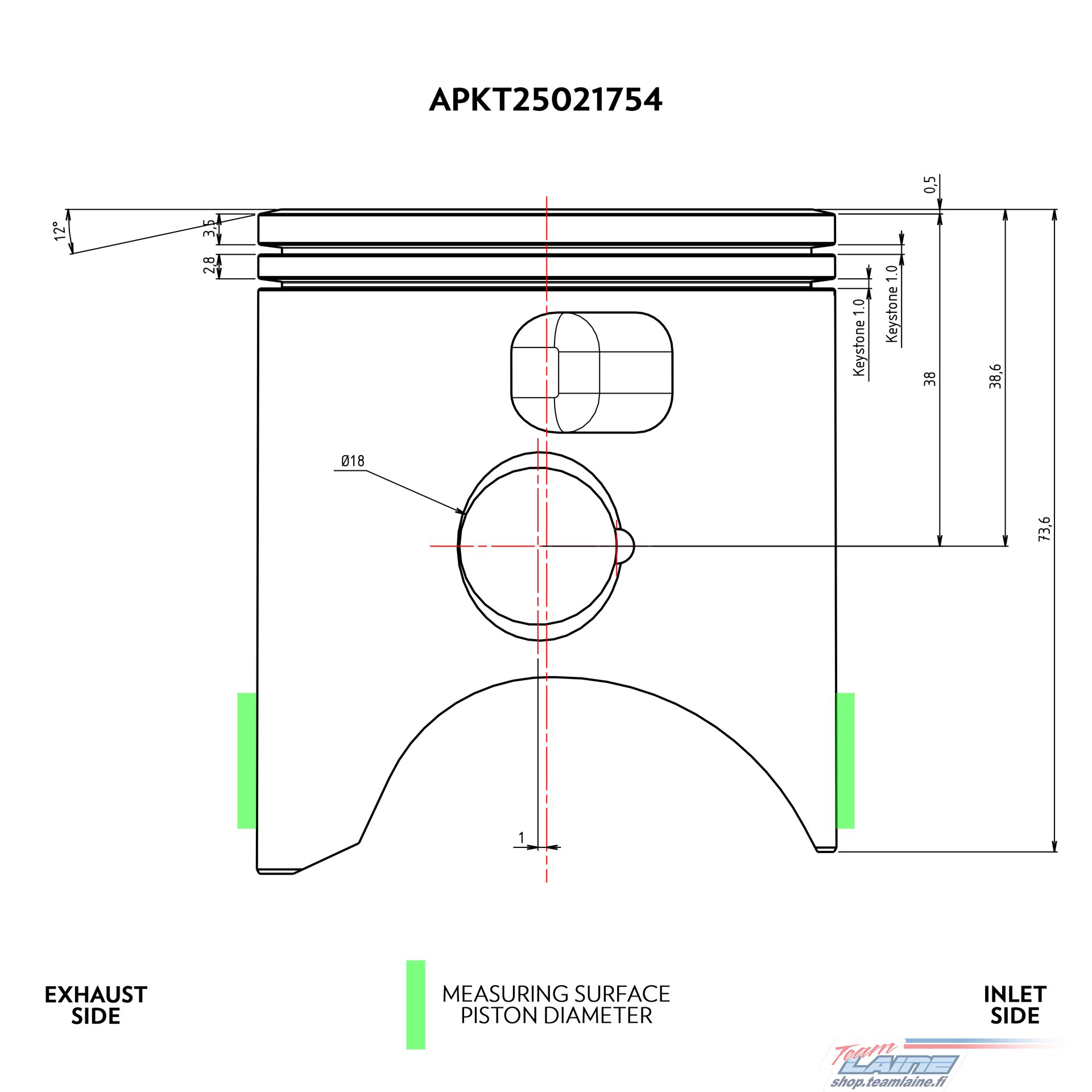

Specifications
Part number
APKT25021754A2
Diameter
Ø66.32
Version
Special
Piston crown shape
Flat top 12°
Bore size
Ø66.40
Piston pin
Ø18
Stroke
2T
Coating
Yes
Piston-cylinder clearance [mm]
0.07
Piston ring end gap [mm]
0.40+0.10
Applications
Application
Make
Model
Year
Motocross
KTM
250SX
2006-2024
Motocross
Husqvarna
TC250
2014-2024
Motocross
GasGas
MC250
2022-2024
