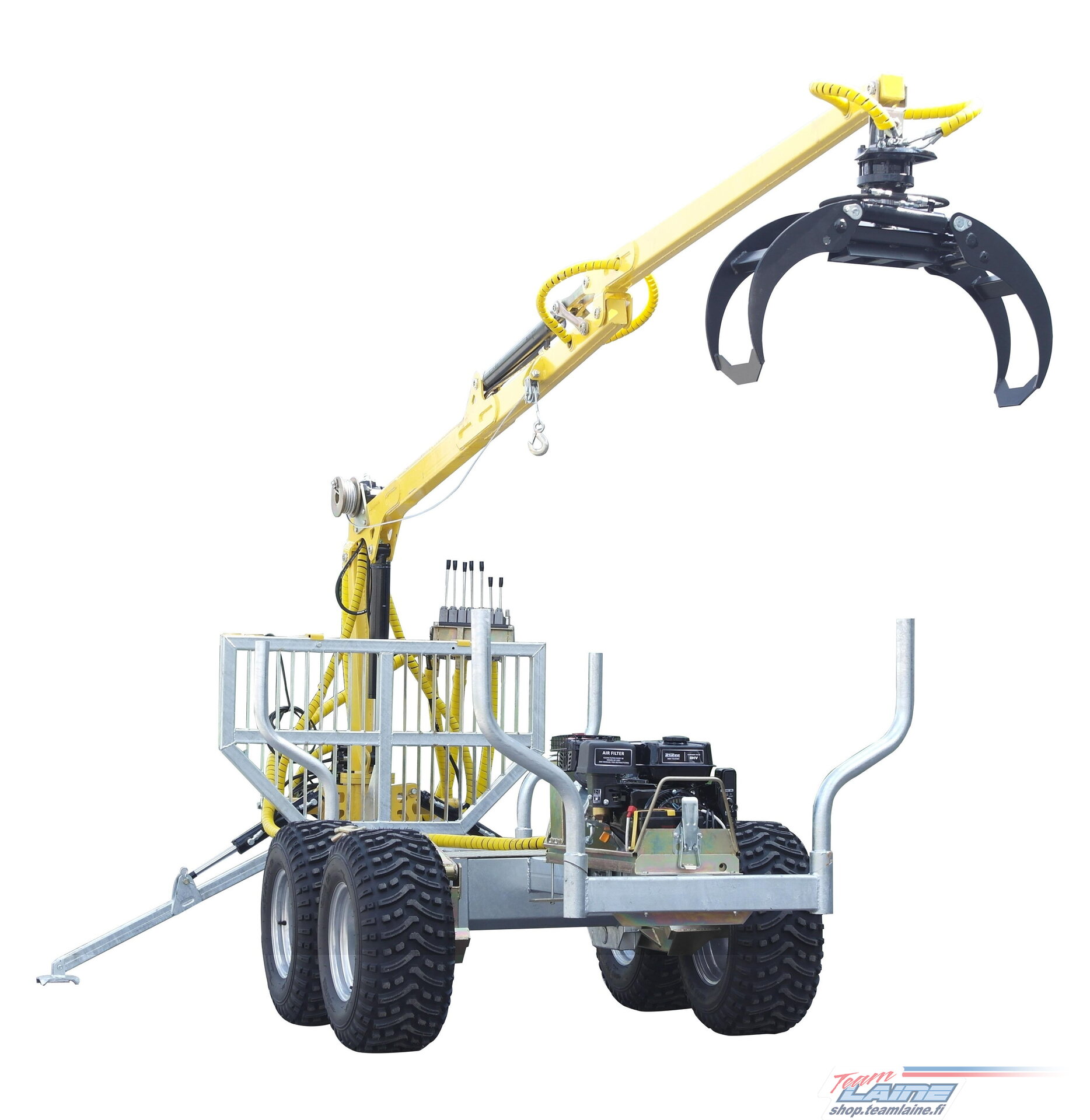

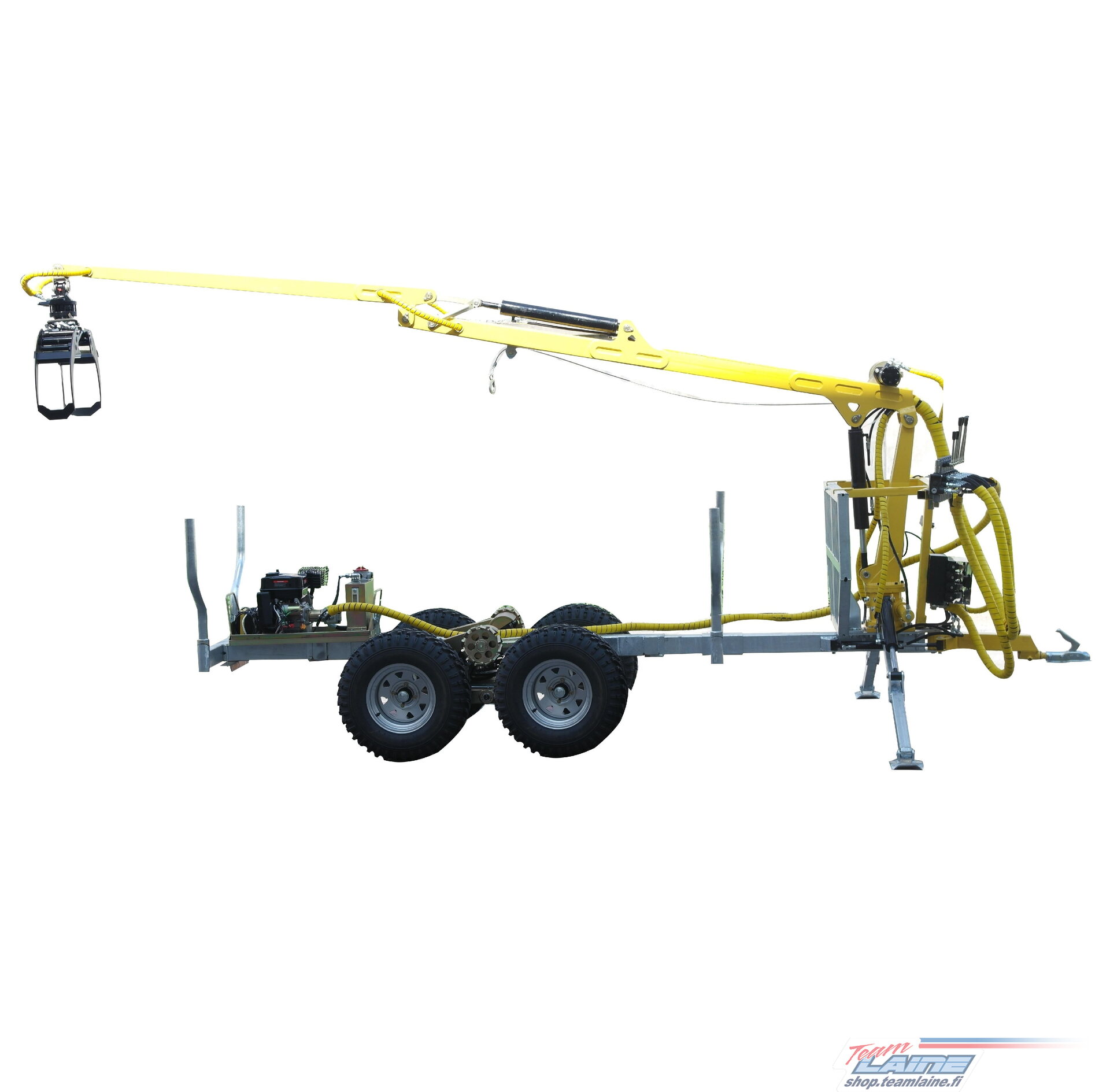

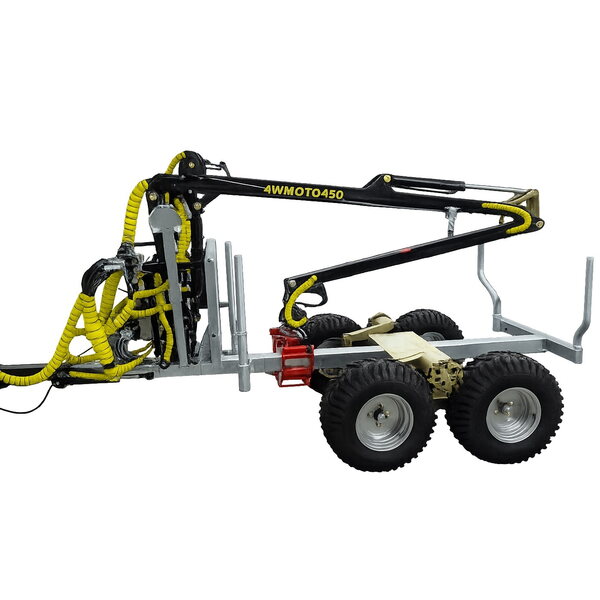

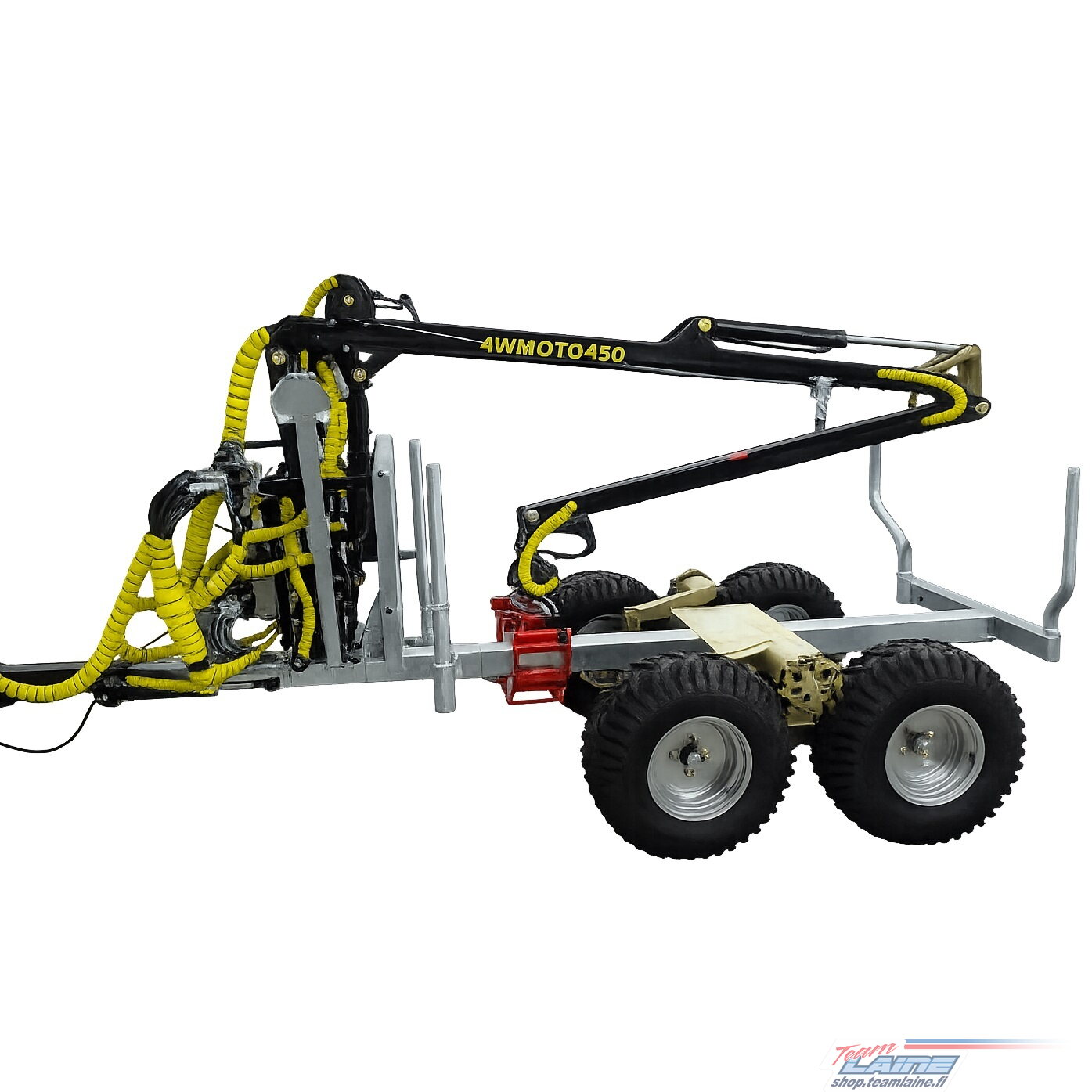

ATV Grapple crane 450-II with wheel drive winch and boom steering

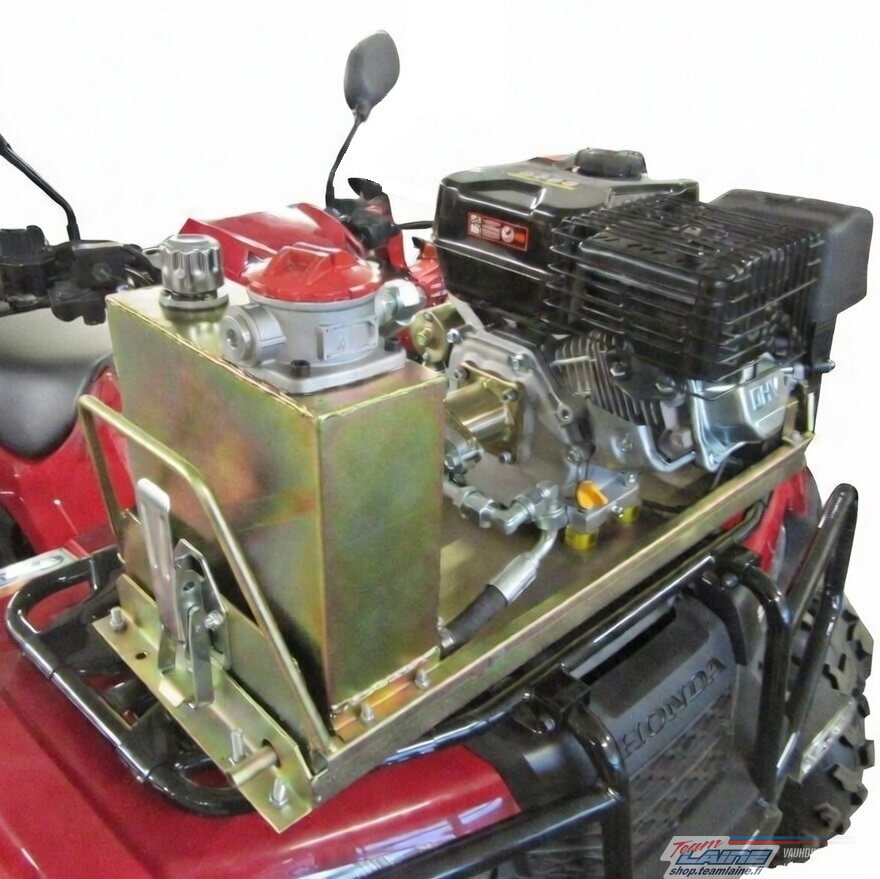

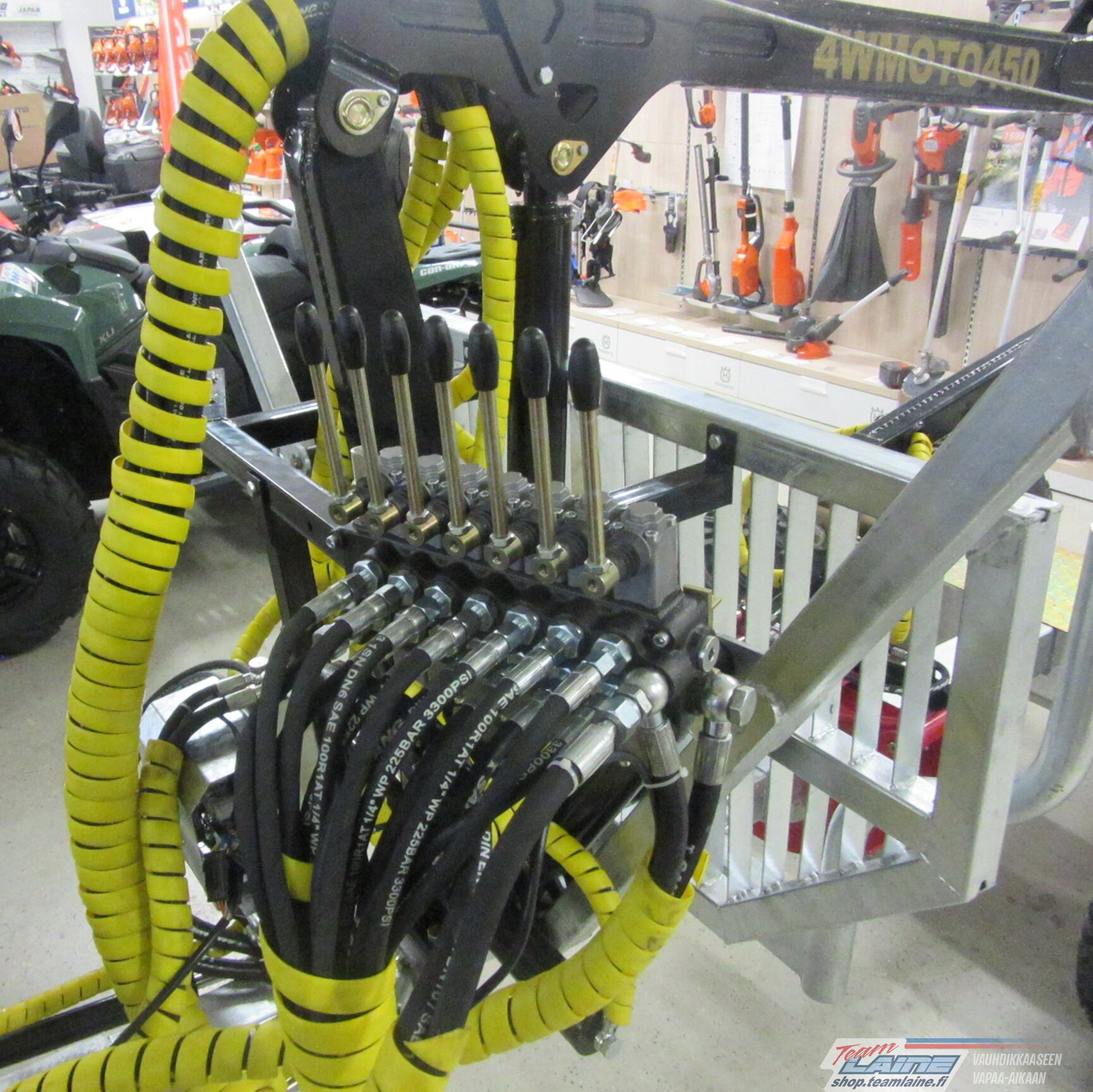

Bronco Grapple crane trailer 450-II for ATV.A powerful trailer with it´s own hydraulic system, wheel drive and hydraulic winch with 18m cable.The 7,5hp Ducar gasoline engine provides the power neccessery to get the job done.Generous ground-clearance and a bogie construction that works perfect with the hydraulic wheel drive that you engage when needed. Hydraulic boom steering for maximum maneuverability.Hydrualic support legs to avoid tipping. CE-approved.4.3m crane reach with a lifting capacity around 200kg. At 2m the capacity is around 300kg. Max. load capacity: 1500kg.50mm rotable ball coupling.Weight: 630kgDimensions (LxWxH): 4.3m x 1.1m x 1.4mWidth between extended supporting legs: 1.6mBunk height: 1.3mLoad bay length: 2.5mMax. lifting height: 4.5mCrane arm length: 3.5mMax. log diameter: 700mmEngine: Ducar 7,5hpPump capacity: 4ML/RWork pressure: 16MPaHydraulic tank capacity: 5LSuitable batteries:Yuasa STD: 14-255Motobatt STD: 14-511BS Battery STD: 140-300619We recommend hydraulic oil 553-83062 (20L) or 553-83061 (5L). Engine oil SAE 30: 553-83052 (1.5L).Crane and boom color: Black
